| UPC | 10612598124746 |
| Brand | Allen-Bradley |
| Series | 1791 Block I/O |
| Voltage | 120 Volts AC |
| Mounting | Vertical / Horizontal |
| Dimensions | 6.95 x 4.35 x 3.85 inches |
| Manufacturer | Rockwell Automation |
| Product Type | Block I/O |
| No of outputs | Sixteen (16) 120VAC outputs |
| No. of Groups | 2 groups of 8 |
| No. of Inputs | Sixteen (16) |
| External Power | 85 to 132 Volts AC |
| Inputs per Block | 16 |
| Outputs per Block | 16 |
| Output Voltage Range | 20-132VAC |
| Nominal Input Current | 11 mA |
| Nominal Input Voltage | 120VAC |
| Input On-state Current | 12.3 mA at 132 Volts maximum |
| On-state Voltage range | 79-132VAC, 47-63 Hz |
| External Power, Current | 150 mA @ 132VAC |
| External Power, Voltage | 85-132VAC, 47-63 Hz |
| Input Off-state Current | 2.3 mA minimum |
| Input Off-state Voltage | 35 Volts maximum |
| Part Number/Catalog No. | 1791-16AC |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Power Dissipation, maximum | 31.3 Watts |
| Input On-state Voltage Range | 79 to 132 Volts AC |
| Thermal Dissipation, maximum | 106.73 BTU/Hr |
Does the Allen-Bradley 1791-16AC come with a warranty?
Yes. The 1791-16AC is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1791-16AC a genuine Allen-Bradley part?
The 1791-16AC is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1791-16AC new or used?
We offer the 1791-16AC in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1791-16AC?
The 1791-16AC draws 11 mA and runs on 120VAC.
What is the Allen-Bradley 1791-16AC?
The 1791-16AC is an Allen-Bradley Block I/O Block I/O.

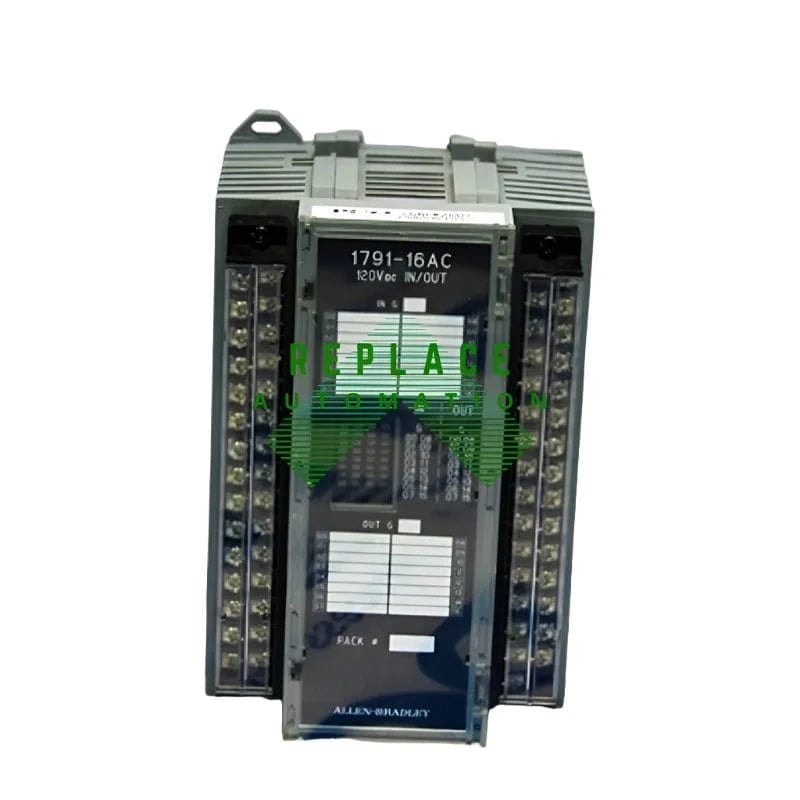

1791-16AC
The Allen-Bradley 1791-16AC is a Block I/O module by Rockwell Automation featuring sixteen 120VAC inputs and outputs each, catering to a voltage range of 79-132VAC. With dual groupings, this versatile device supports efficient power distribution and control while maintaining a compact design for vertical or horizontal mounting.
