| UPC | 10612598179968 |
| Brand | Allen-Bradley |
| Outputs | 16 Sourcing Current |
| Mounting | DIN Rail |
| Vibration | 5g @ 10 to 500 Hz |
| Wire Size | Determined by installed terminal base |
| Indicators | 16 Yellow status indicators |
| Manufacturer | Rockwell Automation |
| Product Type | Flex I/O Digital DC Output Module |
| Terminal base | 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBKD |
| Flexbus Current | 60 mA @ 5V DC |
| Operating Shock | 30 g |
| Number of Inputs | 16, sourcing; electronically fused |
| Isolation Voltage | 50V Continuous |
| Power Dissipation | 5.0 W @ 31.2V DC |
| Product Description | Flex IO 24VDC Output Module |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Thermal Dissipation | 17.0 BTU/hr @ 31.2V DC |
| ON state Voltage, min | 10VDC |
| ON state Voltage, nom | 24VDC |
| On-state Current max. | 500mA per Channel |
| On-state Voltage nom. | 24V DC |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Output Current Rating | 8.0A |
| ON state Voltage, max. | 31.2VDC |
| Part Number/Catalog No. | 1794-OB16P |
| On-state Voltage Drop max. | 0.5V DC |
| Off-state Leakage Current max. | 0.5mA |
Does the Allen-Bradley 1794-OB16P come with a warranty?
Yes. The 1794-OB16P is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1794-OB16P a genuine Allen-Bradley part?
The 1794-OB16P is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1794-OB16P new or used?
We offer the 1794-OB16P in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1794-OB16P?
The 1794-OB16P operates across 0 to 55 C (32 to 131 F) and draws 8.0A.
What is the Allen-Bradley 1794-OB16P?
The 1794-OB16P is an Allen-Bradley Flex I/O 1794 Flex I/O Digital DC Output Module.

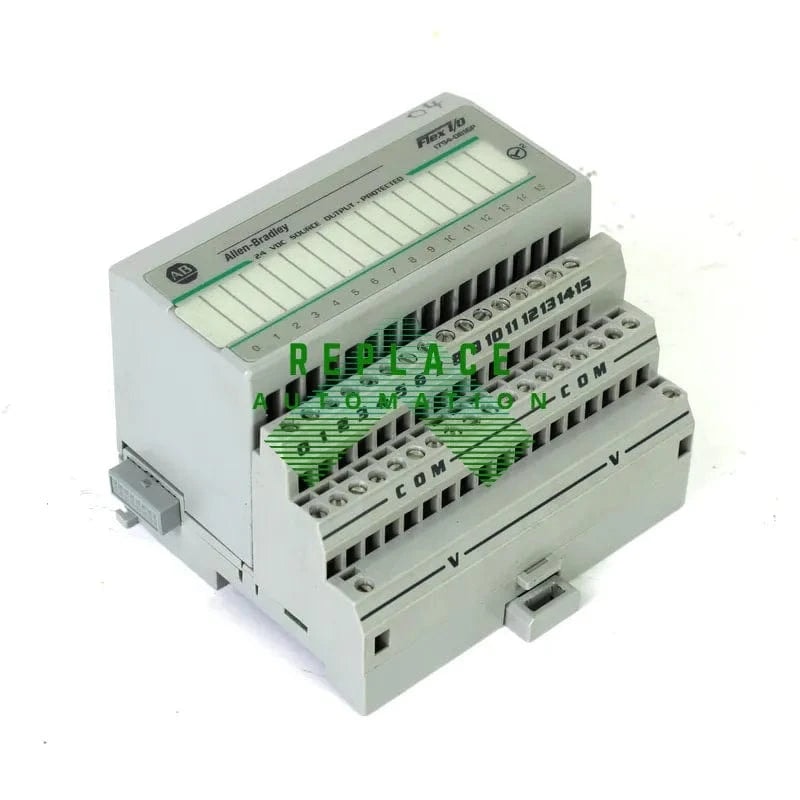

1794-OB16P
The Allen-Bradley 1794-OB16P is a Flex I/O 24VDC sourcing output module from Rockwell Automation, featuring 16 electronically fused outputs and DIN rail mounting. It operates with a nominal voltage of 24V DC and maximum current of 500mA per channel. Its robust design ensures reliable performance in industrial settings.
All products are covered by our 2-Year (24-Month) Replace Industrial Warranty. If a unit is found defective under normal use within the warranty period, we repair or replace it at no additional cost, and a unit may be returned for a full refund within 30 days if returned in the same condition it was sent.
Replace Industrial is an independent distributor and does not convey the manufacturer's warranty; all warranties are provided by Replace Industrial alone. Read the full warranty policy
We repair a wide range of industrial automation equipment, including PLCs, HMIs, drives, servo motors, switches, and circuit breakers, with rush service for critical downtime. Request a quote, ship your unit, and we diagnose, repair, and return it. Request a repair quote
