Is the Allen-Bradley 22A-D2P3N104 new or used?

We offer the 22A-D2P3N104 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 22A-D2P3N104?

The 22A-D2P3N104 runs on 480VAC, 3PH and draws 2.3 Amps.

What is the Allen-Bradley 22A-D2P3N104?

The 22A-D2P3N104 is part of the Allen-Bradley PowerFlex 4 line.

Brand	Allen-Bradley
Input Voltage	480VAC, 3PH
Output Current	2.3 Amps
Enclosure Style	IP20 (Open)

Allen-Bradley

22A-D2P3N104

Rate this product

Drives PowerFlex 4

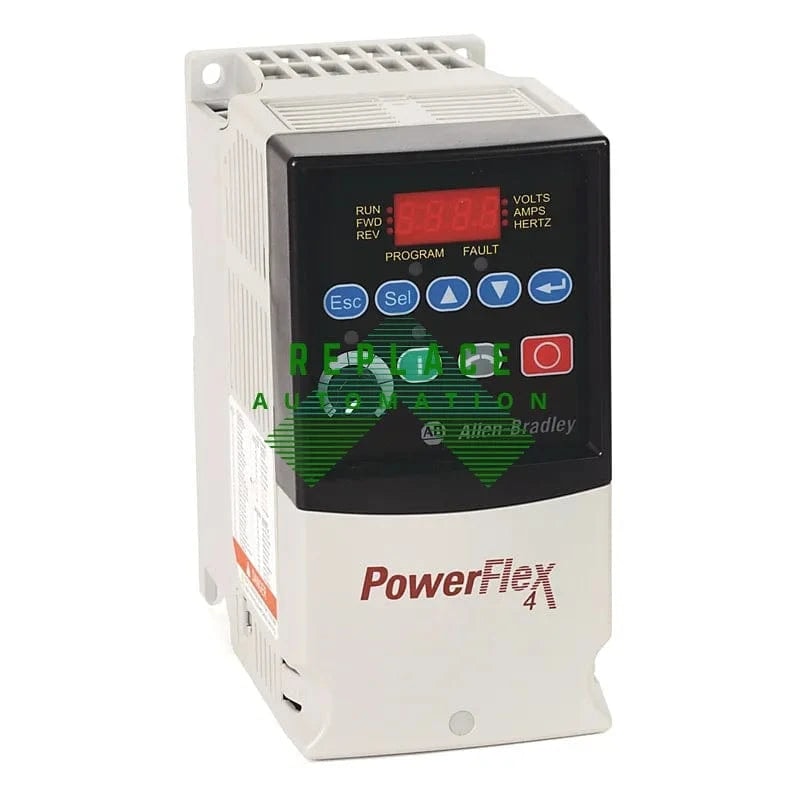

The Allen-Bradley 22A-D2P3N104 is a 0.75 kW (1 HP) AC drive designed for panel mounting with a 480V AC, three-phase input, and 2.3 A output. It features an IP20 open enclosure, an integral keypad with LED display, RS485 communication, fixed terminal block connections, and a brake IGBT.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of the Replace Industrial 22A-D2P3N104

The Replace Industrial 22A-D2P3N104 is a variable frequency drive (VFD) designed by Rockwell Automation under the Allen-Bradley brand. This powerflex 4 series drive is engineered to control the speed of AC induction motors in an array of industrial and automation applications. Its primary function is to accurately adjust the motor speed to meet the process requirements, thus enhancing productivity and energy efficiency.

Key Specifications

The 22A-D2P3N104 has several important specifications that users should consider. It is rated to operate at a power range of 0.75 kW (1 HP) with an input voltage of 380-480V AC three-phase. The drive has a 2.3 Amps output current and continuously supplies adjustable motor control. Additionally, it features an integral keypad with a backlit LCD display for user interface and programming, along with an IP20 enclosure rating that requires separate mounting for protection against environmental factors.

Applications and Industries

This VFD is commonly used in a variety of industries including material handling, HVAC, pumps and fans, and machine tool applications. Its versatility and reliability make it an essential component for applications that need precise motor control, such as conveyor systems, extruders, pumps, mixers, and more. Because of its compact size, it can be easily integrated into control cabinets and machine designs with limited space.

Installation and Programming

Installation of the 22A-D2P3N104 is designed to be user-friendly with its detailed instruction manual. The VFD can be panel mounted or DIN-rail mounted in a control cabinet. Programming can be done using the integral keypad, through a Remote I/O, or via a computer with connected drive software. The software provides advanced features and diagnostics which simplify setup, tuning, and troubleshooting.

Advanced Features

The 22A-D2P3N104 drive includes advanced features such as slip compensation, electronic thermal overload protection, and flying start, which help in managing motor performance and protecting the system. It also supports several communication options including DeviceNet, ControlNet, and EtherNet/IP, enabling integration into a distributed control system. Moreover, it provides flexibility with its multiple I/O configurations, supporting various external control and feedback devices.
