Product type	Adjustable frequency AC drive
Function	Variable frequency drive
Manufacturer	Allen Bradley
Product line	PowerFlex 40
Part number	22B-D017N104
Input voltage	380 to 480 VAC
Input phase	3-phase
Output current	17.0 A
Rated power	7.5 kW (10.0 HP)
Output voltage range	342 to 528 VAC
Control method	Sensorless vector control
Control feature	PID control
Brake	Built-in IGBT brake
Filter	No CE-compliant filter
Fixed discrete inputs	3
Programmable discrete outputs	4
Analog inputs	2 unipolar inputs, 0 to 10 VDC or 4 to 20 mA
Bipolar analog input	1 input, +/- 10 VDC
Discrete output	1 N.O./N.C. dry contact
Digital or optocoupler outputs	2
Analog output	1 output, 0 to 10 VDC or 4 to 20 mA
Communication interface	RS-485
Communication topology	Daisy-chain network, up to 32 drives per segment
Keypad	Fixed LED keypad
Display	LCD
Mounting	Panel mount
Frame size	Size C
Dimensions	5.1 x 10.2 x 7.1 inches (W x H x D)
Weight	9.25 lb (4.20 kg)
Enclosure rating	IP20, NEMA/UL Type Open
Operating temperature	10 to 50 °C (14 to 122 °F)
Storage temperature	40 to 85 °C (40 to 185 °F)
Minimum ride-through	0.5 s
Typical ride-through	2 s
Faultless power ride-through	100 ms
Overvoltage trip	810 VDC bus voltage (575 VAC incoming line)
Undervoltage trip	390 VDC bus voltage (275 VAC incoming line)
UPC	820919078606

What is the 22B-D017N104 rated for?

The Allen-Bradley 22B-D017N104 is a PowerFlex 40 adjustable-frequency AC drive rated at 7.5 kW (10 HP), with a 17 A output current and 480 VAC, 3-phase input.

Does the 22B-D017N104 include a filter?

No. The 22B-D017N104 is supplied without a CE-compliant filter.

What enclosure is used for the 22B-D017N104?

The drive uses a panel-mount, open enclosure with an IP20 rating and NEMA/UL Type Open construction.

What communication interface is built into the 22B-D017N104?

The drive includes an RS-485 communication port for connecting it to a network.

Does the 22B-D017N104 support PID control?

Yes. The drive supports a PID control algorithm for automatic process control.

What control method does the 22B-D017N104 use?

The 22B-D017N104 uses sensorless vector control for motor control.

Does the 22B-D017N104 include a brake function?

Yes. The drive includes a standard brake with an integral IGBT brake mechanism.

What frame size is the 22B-D017N104?

The 22B-D017N104 uses a size C frame with dimensions of 5.1 x 10.2 x 7.1 inches (width x height x depth).

Does the Allen-Bradley 22B-D017N104 come with a warranty?

Yes. The 22B-D017N104 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 22B-D017N104 a genuine Allen-Bradley part?

The 22B-D017N104 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 22B-D017N104 new or used?

We offer the 22B-D017N104 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 22B-D017N104?

The 22B-D017N104 runs on 380 to 480 VAC, draws 17.0 A, and is rated at 7.5 kW (10.0 HP).

What is the Allen-Bradley 22B-D017N104?

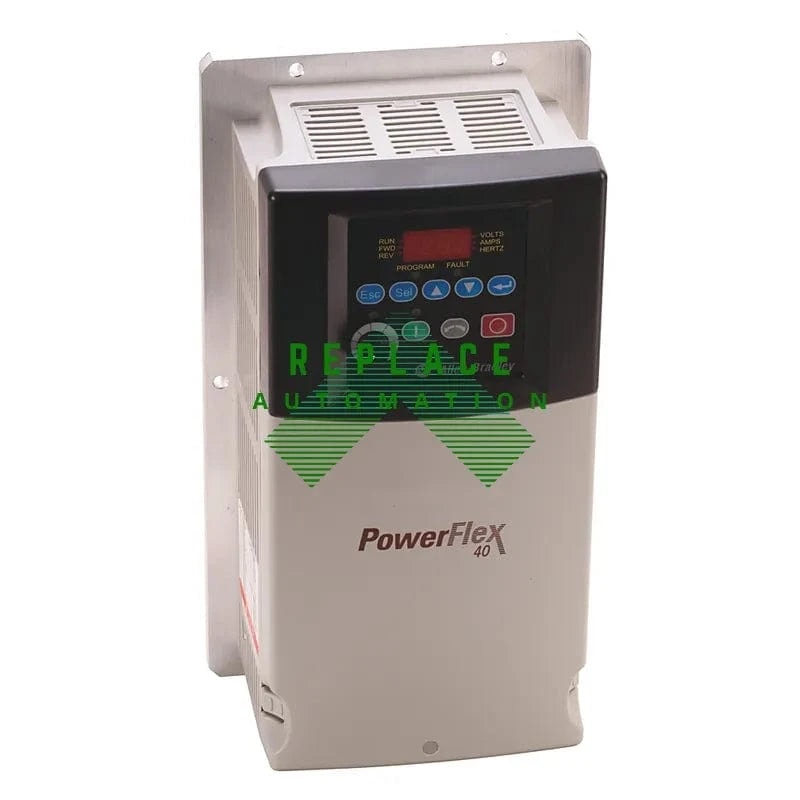

The 22B-D017N104 is an Allen-Bradley PowerFlex 40 Adjustable frequency AC drive.

Allen-Bradley

22B-D017N104

Rate this product

Ready to ShipDrives PowerFlex 40

The Allen-Bradley 22B-D017N104 is a panel-mounted AC drive with a power rating of 7.5 kW (10 HP) and an output current of 17 amps, designed for 480VAC, 3-phase input with a frequency of 50-60 Hz. This IP20 open enclosure drive features a built-in brake IGBT, 0.98 power factor, integral keypad, LED display, RS485 communication, and fixed terminal block connections for robust industrial applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 22B-D017N104

The Allen-Bradley 22B-D017N104 is a PowerFlex 40 adjustable-frequency AC drive designed for panel-mounted industrial installations. It provides variable-speed control for three-phase AC motors and is rated for 480 VAC, 50/60 Hz service.

This Series A drive combines an integral keypad and LED display with fixed terminal connections, RS485 communications, and a built-in brake IGBT. Its open IP20 enclosure is identified as NEMA UL Type Open.

Key Features

The drive supports sensorless vector control and a PID control algorithm for motor-speed regulation and automated process control. Adjustable PWM frequency and robust overload protection provide additional operating flexibility.

Local monitoring and configuration are supported through the integral keypad and LED display. Essential RS485 communications are built in, while optional communication adapters can extend network connectivity.

Performance and Capacity

The 22B-D017N104 is rated at 7.5 kW, or 10 HP, with a maximum output current of 17 A. It is intended for three-phase motor-control applications requiring adjustable torque and speed.

The unit does not include a CE-compliant filter. Its open enclosure requires installation in an environment compatible with IP20 protection.

Installation and Compatibility

Panel mounting and fixed terminal blocks simplify integration into control panels. The drive includes three fixed discrete inputs for functions such as start, stop, and reverse, plus four fully programmable discrete outputs.

Two unipolar analog inputs accept 0–10 V or 4–20 mA signals, while one bipolar analog input supports a ±10 V range. Relay and optocoupler output options provide additional control and indication capability.

Applications and Industries

General-purpose variable-speed motor control, process regulation, and applications benefiting from high starting torque are supported by the drive's sensorless vector and PID capabilities.

The compact PowerFlex 40 design is suited to industrial equipment requiring a panel-mounted 10 HP drive with local control, discrete I/O, and RS485 networking in an open IP20 enclosure.
