Manufacturer	Allen-Bradley
Product Line	PowerFlex 525
Part Number	25B-D1P4N114
Input Voltage	380…480V AC (-15%, +10%)
Input Phase	3-Phase
Output Voltage	0…460V 3-phase
Output Current	1.4 A
Output Power	0.4 kW or 0.5 HP
Frame Size	Frame A
Enclosure Rating	IP20 / NEMA UL Type Open
EMC Filtering	Integrated
Control Method	Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control
Safety Feature	Safe-Torque Off (STO)
Communication Port	Ethernet I/P / RS485
Discrete Inputs	Seven (7) Sink / Source
Discrete Outputs	One (1) N.O.; One (1) N.C. Contacts
Analog Inputs	Two (2) 0-10VDC; 0-20mA
Analog Outputs	One (1) 0-10VDC; 0-20mA
Installation	Panel Mount / DIN Rail
Zero Stacking	Supported
Weight	3.25 lbs (1.47 kg)
Bus Overvoltage Trip	810V DC
Bus Undervoltage Trip	390V DC
Overcurrent Rating	200% hardware limit, 300% instantaneous fault
Ground Fault Trip	Phase-to-ground on drive output
Short Circuit Trip	Phase-to-phase on drive output
Motor Overload Protection	Class 10
UL Listing	UL 508C File 29572

What is the rated output power and current of the 25B-D1P4N114?

The 25B-D1P4N114 delivers an output power of 0.4 kW (0.5 HP) and an output current of 1.4 A.

What are the input voltage and phase requirements for this drive?

The drive requires a 3-phase AC input with a voltage range of 323–528 VAC, typically operating at 480 VAC.

Does the 25B-D1P4N114 include an integrated EMC filter?

Yes, this model includes an integrated EMC filter, as indicated by the '114' suffix in the part number.

What mounting options are available for the 25B-D1P4N114?

The drive supports both panel mounting and DIN rail installation. It is also compatible with Zero Stacking to save panel space.

What control methods does the PowerFlex 525 25B-D1P4N114 support?

The drive supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), closed-loop velocity vector control, and Permanent Magnet motor control.

What safety features are integrated into this drive?

The drive features integrated Safe Torque Off (STO) functionality and PointStop technology.

What is the enclosure rating of the 25B-D1P4N114?

The drive has an IP20 / NEMA UL Type Open enclosure rating.

What communication ports are built into the 25B-D1P4N114?

The drive includes a built-in Ethernet/IP and RS485 communication port.

Does the Allen-Bradley 25B-D1P4N114 come with a warranty?

Yes. The 25B-D1P4N114 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 25B-D1P4N114 a genuine Allen-Bradley part?

The 25B-D1P4N114 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 25B-D1P4N114 new or used?

We offer the 25B-D1P4N114 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 25B-D1P4N114?

The 25B-D1P4N114 runs on 380…480V AC (-15%, +10%), draws 1.4 A, and is rated at 0.4 kW or 0.5 HP.

What is the Allen-Bradley 25B-D1P4N114?

The 25B-D1P4N114 is part of the Allen-Bradley PowerFlex 525 line.

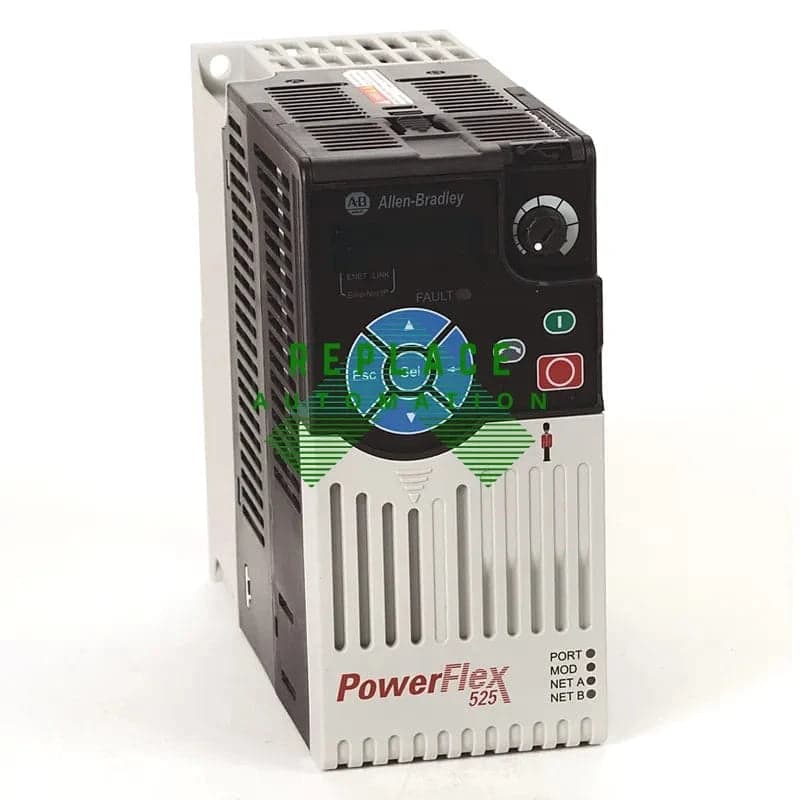

Allen-Bradley

25B-D1P4N114

Rate this product

Drives PowerFlex 525

The Allen-Bradley 25B-D1P4N114 is a PowerFlex 525 AC Drive designed for efficient motor control. Equipped with an integrated EMC filter and brake IGBT, it operates at 480V AC input and delivers 1.4 A output. This panel-mounted drive offers advanced features, including sensorless vector control and safety with its SIL2 Cat 3-rated Safe Torque Off.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 25B-D1P4N114

The Allen-Bradley 25B-D1P4N114 is a PowerFlex 525 adjustable frequency AC drive designed for efficient motor control in industrial applications. This unit is part of the 480V AC, 3-phase operated drives within the PowerFlex 525 family and is specifically configured with an integrated EMC filter. It serves as a versatile alternative to soft-starters, offering programmable capabilities that enhance operational efficiency, simplify maintenance, and increase control system uptime.

As a Frame A drive, the 25B-D1P4N114 is compact and suitable for panel-mounted installations. It supports both direct panel mounting and DIN rail mounting, providing flexibility for engineers and installers. The drive is rated for 0.4 kW or 0.5 HP output power, making it ideal for smaller motor applications where precise speed and torque control are required.

Key Features

This drive features an integrated EMC filter, which helps reduce electromagnetic interference and ensures compliance with emission standards. It supports multiple control methods, including Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), closed-loop velocity vector control, and Permanent Magnet motor control. The unit also includes PointStop technology and Safe-Torque Off (STO) functionality for enhanced safety.

Communication capabilities are built-in, featuring Ethernet I/P and RS485 ports. The drive includes seven discrete inputs (sink/source), one N.O. and one N.C. discrete output contact, two analog inputs (0-10VDC or 0-20mA), and one analog output (0-10VDC or 0-20mA). These I/O options allow for flexible integration into existing control systems.

Performance and Capacity

The 25B-D1P4N114 operates on a 3-phase input voltage range of 323-528 VAC, with a nominal rating of 480V AC. It delivers an output current of 1.4 A and an output power of 0.4 kW or 0.5 HP. The output voltage range is 0-460V AC, supporting a fully programmable frequency of 0-500 Hz. The drive has a bus overvoltage trip rating of 810V DC and an undervoltage trip rating of 390V DC.

Protection features include an overcurrent rating of 200% hardware limit and 300% instantaneous fault, along with ground fault and short circuit trip protection. The electronic overload rating complies with NEC article 430 for motor overload protection and NEC article 430.126(A)(2) for motor over-temperature protection. The unit is certified under UL 508C File 29572.

Installation and Compatibility

The 25B-D1P4N114 is designed for panel mount or DIN rail installation. It supports Zero Stacking, a feature that effectively saves panel space when installing an array of PowerFlex 525 drives. The enclosure is rated IP20 / NEMA UL Type Open, making it suitable for indoor, dry environments. The drive weighs approximately 3.25 lbs (1.47 kg) and is manufactured in China.

Compatibility is ensured through standard interface modules and the ability to integrate with various control systems via its built-in communication ports. The drive's compact Frame A size and flexible mounting options contribute to ease of installation and reduced engineering costs.

Applications and Industries

The 25B-D1P4N114 is suitable for a wide range of industrial applications requiring precise motor control, including conveyor systems, packaging machinery, and HVAC systems. Its energy-saving capabilities and advanced control features make it a valuable asset in industries focused on operational efficiency and reliability. The drive's robust protection features and compliance with safety standards ensure safe operation in demanding industrial environments.
