| Manufacturer | Allen-Bradley |
| Product Line | PowerFlex 527 |
| Part Number | 25C-B011N104 |
| Weight | 3.19 lbs (1.45 kg) |
| Voltage Class | 240 AC Volts |
| Output Current | 11 Amperes |
| Input Voltage | 200-240 VAC |
| Frame Size | A |
| Input Phase | 3-Phase |
| Enclosure Type | IP20 NEMA (Open) |
| Output Voltage | 0-230VAC |
| EMC Filtering Option | No |
| Output Phase | 3-Phase |
| Phase Count | Three |
| Output Power | 3.0 HP or 2.2 kW; Normal and Heavy Duty |
| Horsepower | 3 |
| Communication | EtherNet IP (Dual Port) |
| Discrete Input | Four (4) digital inputs |
| Analog Input | One (1) analog input |
| Discrete Output | One (1) relay output |
| Analog Output | One (1) analog output |
| Braking | Built-in IGBT |
| EMC Filter | None Installed |
| Interface Module | LCD QuickView |
| Communication Ports | Dual Ethernet I/P |
| Control Method | V/Hz Control, Closed Loop Velocity Vector Control, Sensorless Vector Control (SVC) |
| Input Current | 13.8 Amperes |
| Output Current (Heavy Duty) | 6.0 Amperes |
| Voltage Tolerance | -15-10% |
| Frequency Range | 47-63 Hertz |
| Power Factor | 0.98 |
| Short-Circuit Rating | 100,000A (Symmetrical) |
| Ride-Through Time (Power) | 100ms |
| Ride-Through Time (Logic Control) | 0.5s |
| Motor Overload Protection | Class 10 |
| Hardware Overload Limit | 200% |
| Instantaneous Fault Over-Current Protection | 300% |
| Carrier Frequency Range | 2-8 kHz |
| Frequency Accuracy | +/-0.05% |
| Mounting Orientation | Horizontal or Vertical |
What is the input voltage and phase configuration for the 25C-B011N104?
The 25C-B011N104 is rated for 200-240 VAC, 3-phase input.
What are the output power and current ratings for this drive?
The drive has an output power rating of 2.2 kW (3 HP) and an output current of 11 Amperes.
What communication interfaces are available on the 25C-B011N104?
The 25C-B011N104 features a dual-port EtherNet/IP communication interface.
What is the enclosure type and frame size of the 25C-B011N104?
The drive is an A-frame unit with an IP20 NEMA (Open) enclosure.
Does the 25C-B011N104 include an integrated EMC filter?
No, the 25C-B011N104 does not have an integrated EMC filter.
What mounting orientations are supported by the 25C-B011N104?
The drive supports both horizontal and vertical mounting orientations.
What control methods does the 25C-B011N104 support?
The drive supports V/Hz Control, Closed Loop Velocity Vector Control, and Sensorless Vector Control (SVC).
Does the Allen-Bradley 25C-B011N104 come with a warranty?
Yes. The 25C-B011N104 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 25C-B011N104 a genuine Allen-Bradley part?
The 25C-B011N104 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 25C-B011N104 new or used?
We offer the 25C-B011N104 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 25C-B011N104?
The 25C-B011N104 draws 11 Amperes, runs on 200-240 VAC, and is rated at 3.0 HP or 2.2 kW; Normal and Heavy Duty.
What is the Allen-Bradley 25C-B011N104?
The 25C-B011N104 is part of the Allen-Bradley PowerFlex 527 line.
25C-B011N104

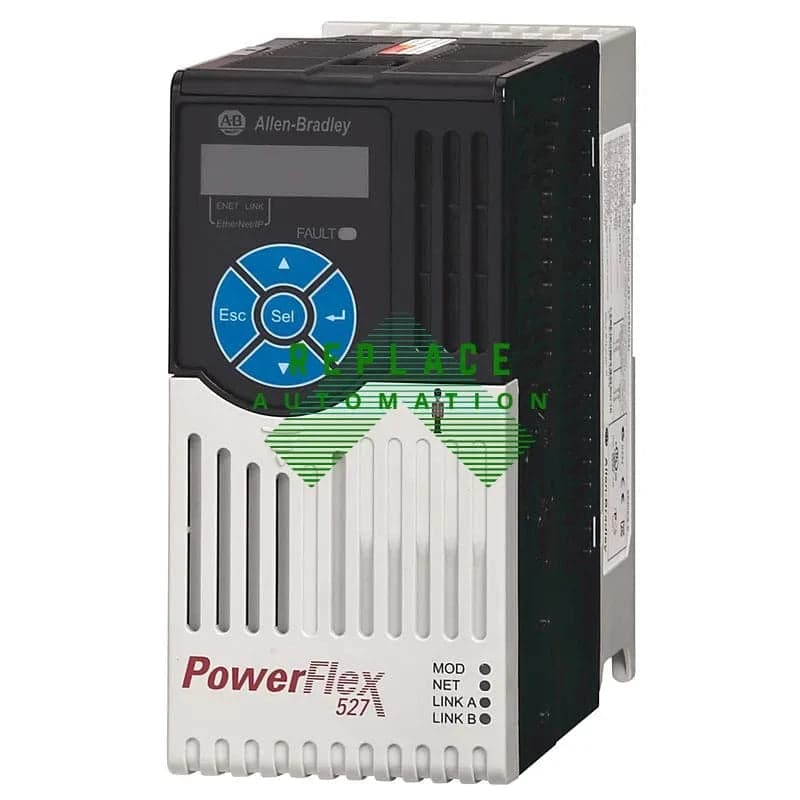

The 25C-B011N104 is an Allen-Bradley PowerFlex 527 AC Drive with dual port EtherNet/IP and integrated safety. Rated 2.2 kW (3 Hp), it handles 200-240V AC, suitable for three-phase power at 50/60 Hz. The unit has an 11A output, A frame size, designed for panel mounting, and boasts an IP20 rating.
