Manufacturer	Allen-Bradley
Product Line	PowerFlex 527
Part Number	25C-D013N104
UPC	887172530326
Weight	6.19 lbs (2.81 kg)
Voltage Class	480 AC Volts
Input Voltage Range	380 to 480 Volts AC
Output Voltage Range	0 to 460 Volts AC
Output Current	13 Amperes
Frame Size	C
Enclosure Type	IP20 NEMA (Open)
EMC Filtering Option	No
Phase Count	Three
Horsepower	7.5
Output Power Rating	5.5 kilowatts
Communication	EtherNet IP (Dual Port)
Braking	Standard Braking
Interface Module	Standard Interface Module
Country of Origin	TW - Taiwan

What is the rated horsepower and output current of the Allen-Bradley 25C-D013N104?

The 25C-D013N104 is rated for 7.5 HP (5.5 kW) with a continuous output current of 13 Amperes.

What are the input voltage and phase requirements for this drive?

This drive requires a 3-phase AC input with a voltage class of 480V AC. The acceptable input voltage range is 380 to 480V AC (-15%, +10%).

Does the 25C-D013N104 include an integrated EMC filter?

No, the 25C-D013N104 is a non-filtered drive. If an integrated EMC filter is required, the corresponding part number is 25C-D013N114.

What communication protocols are supported by this PowerFlex 527 drive?

The drive features a dual-port EtherNet/IP communication interface, allowing for integration with Rockwell Automation Logix controllers such as ControlLogix, CompactLogix, and GuardLogix.

What is the frame size and enclosure type of the 25C-D013N104?

The drive is a Frame Size C unit with an IP20 NEMA Type Open enclosure, designed for panel mounting in industrial environments.

What is the output voltage range of the 25C-D013N104?

The drive provides a 3-phase output voltage range of 0 to 460V AC.

Does the Allen-Bradley 25C-D013N104 come with a warranty?

Yes. The 25C-D013N104 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 25C-D013N104 a genuine Allen-Bradley part?

The 25C-D013N104 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 25C-D013N104 new or used?

We offer the 25C-D013N104 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 25C-D013N104?

The 25C-D013N104 runs on 380 to 480 Volts AC, draws 13 Amperes, and is rated at 5.5 kilowatts.

What is the Allen-Bradley 25C-D013N104?

The 25C-D013N104 is part of the Allen-Bradley PowerFlex 527 line.

Allen-Bradley

25C-D013N104

Rate this product

Drives PowerFlex 527

The Allen-Bradley 25C-D013N104 PowerFlex 527 AC Drive is designed for precise motor control, offering 2.2 kW (3 Hp) power with a 480VAC, 3-phase input. It's equipped with an EMC filter, integrated safety features, and a 7th IGBT brake. With dual port EtherNet/IP, this A-frame, panel-mount drive caters to diverse industrial applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

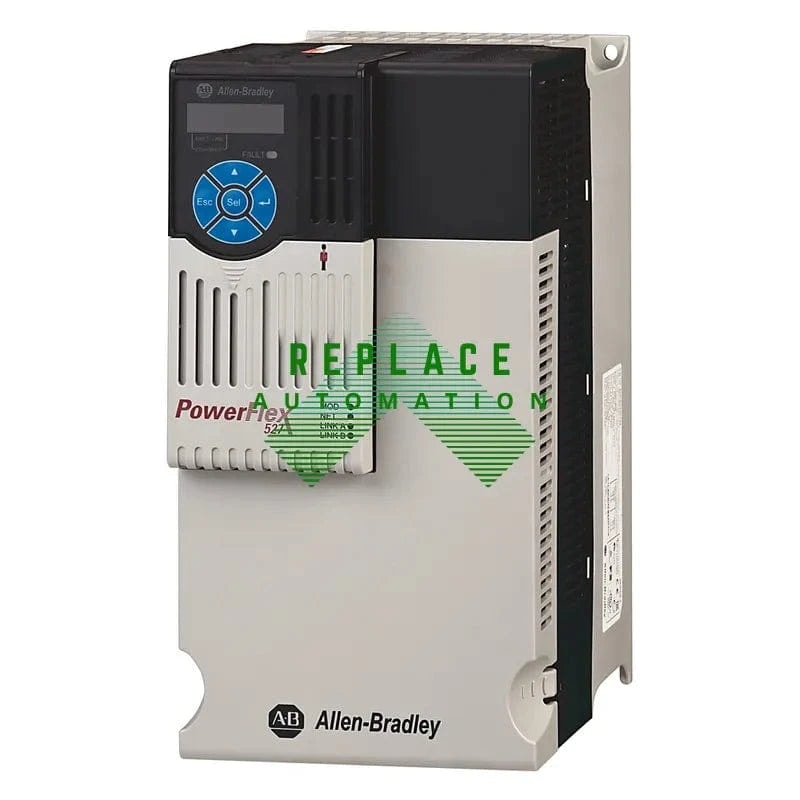

Overview of Allen-Bradley 25C-D013N104

The Allen-Bradley 25C-D013N104 is a PowerFlex 527 series adjustable frequency drive designed for precise motor control in industrial environments. This AC-powered drive features a 480VAC, 3-phase input and a 7.5 Horsepower (5.5 kW) output rating, making it suitable for a wide range of machinery requiring reliable speed and torque management.

Manufactured by Rockwell Automation, this drive is part of the PowerFlex 527 family, which is engineered to provide a consistent configuration experience for both AC and servo drives. It is specifically designed for use with Allen-Bradley Logix Programmable Automation Controllers (PACs), ensuring seamless integration into modern industrial automation systems.

Key Features

The 25C-D013N104 includes a dual-port EtherNet/IP communication option, enhancing connectivity and usability within networked industrial systems. It features a standard interface module and standard braking capabilities, providing essential control functions for induction motors.

This drive is equipped with built-in safe torque-off features and supports integrated safety functions. It is designed with an IP20 NEMA open enclosure, which is ideal for factory floor applications where environmental protection is managed by the surrounding equipment or enclosure.

Performance and Capacity

The drive has a normal and heavy-duty output power rating of 7.5 Horsepower (5.5 kW) with an output current of 13 Amperes. It operates on a 380 to 480VAC, 3-phase input voltage range, with a 3-phase output voltage range of 0 to 460 Volts AC. The total watts loss for this unit is 170 Watts.

With a Size C frame, the 25C-D013N104 is compact enough for panel mounting while providing the power necessary for medium-sized industrial motors. The drive is rated for 480VAC operation, ensuring compatibility with standard high-voltage industrial power supplies.

Installation and Compatibility

The 25C-D013N104 is compatible with GuardLogix 1756-L7xS, ControlLogix 1756-L7x, and CompactLogix 5370 controllers. It is also supported by the Studio 5000 Logix Designer application, facilitating easy programming and configuration. The drive requires marginal manual reconfiguration, streamlining the installation process for technicians.

As a panel-mount drive with an IP20 NEMA open enclosure, it is designed to be installed within a protective cabinet or enclosure. The unit weighs approximately 6.19 lbs (2.81 kg), making it manageable for standard panel installation procedures.

Applications and Industries

This drive is ideal for simple speed control of induction motors in various industrial settings. It is particularly suited for machines that utilize the same drive configuration experience for both AC and servo drives, offering flexibility in system design.

The 25C-D013N104 is well-suited for factory floor applications where high-performance motor control is required. Its robust design and compatibility with major Allen-Bradley controllers make it a reliable choice for diverse industrial automation projects.
