Manufacturer	Allen-Bradley
Product Line	PanelView 550
Product Type	Operator Terminal
Display Size	5.5 in.
Display Type	Monochrome LCD blue mode
Display Area	120 x 60 mm (4.75 x 2.38 in.)
Resolution	256 x 128
Input Type	Keypad / Touch
Keypad Function Keys	10 function keys (F1…F10)
Touchscreen Actuation	1 million presses
Communication Ports	DeviceNet; RS-232 (printer)
Input Voltage Range	85…264V AC, 47…63 Hz
Input Power	120 VAC
Application Memory	170 KB application runtime
Nonvolatile Memory	240 KB
Communication Cable	2711-NC13
Weight	2.63 lbs (1.19 kg)
Series	A,B,C,D,E,F,G,H
Product Lifecycle Status	Discontinued/Obsolete

What type of display does the 2711-B5A10 feature?

The 2711-B5A10 features a 5.5-inch monochrome LCD display in blue mode with a resolution of 256 x 128 pixels.

What input methods are available on the 2711-B5A10?

The terminal offers dual-input functionality, including a touchscreen and a keypad. The keypad includes navigational keys (Up, Down, Left, Right), Enter and Escape keys, and ten function keys (F1 through F10).

What communication ports are built into the 2711-B5A10?

The 2711-B5A10 is equipped with a DeviceNet communication port and an RS-232 printer port.

What is the power requirement for the 2711-B5A10?

The unit is powered by 120 VAC. The input voltage range is 85 to 264 VAC at 47 to 63 Hz.

How much memory does the 2711-B5A10 contain?

The terminal contains 170 KB of application runtime memory and 240 KB of nonvolatile memory for application objects, text, and bitmaps.

What software is used to configure the 2711-B5A10?

The 2711-B5A10 runs on PanelBuilder 32 software.

What is the expected lifespan of the backlight on the 2711-B5A10?

The LED backlight has an expected life of 100,000 hours.

Is the 2711-B5A10 currently in production?

No, the 2711-B5A10 is a discontinued/obsolete product.

Does the Allen-Bradley 2711-B5A10 come with a warranty?

Yes. The 2711-B5A10 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 2711-B5A10 a genuine Allen-Bradley part?

The 2711-B5A10 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 2711-B5A10 new or used?

We offer the 2711-B5A10 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 2711-B5A10?

The 2711-B5A10 runs on 85…264V AC, 47…63 Hz.

What is the Allen-Bradley 2711-B5A10?

The 2711-B5A10 is an Allen-Bradley Panelview 550 Operator Terminal.

Allen-Bradley

2711-B5A10

Rate this product

HMIs Panelview 550

The Allen-Bradley 2711-B5A10 is a Panelview 550 HMI with a 5.5" monochrome LCD display, offering both keypad and touchscreen inputs. It supports DeviceNet and RS-232 connectivity, powered by 120 VAC. Equipped with 170 KB memory, it runs on Panelbuilder 32 software, making it ideal for industrial control applications, despite being a discontinued product.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 2711-B5A10

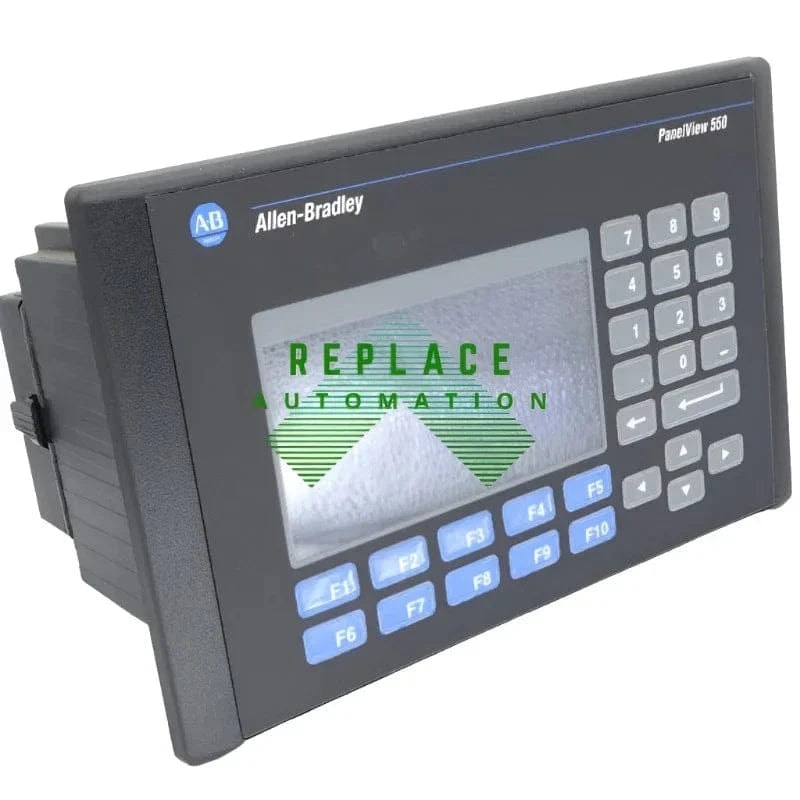

The Allen-Bradley 2711-B5A10 is a PanelView 550 Standard Operator Terminal designed for industrial control applications. This discontinued unit features a 5.5-inch monochrome LCD display in blue mode, providing a clear interface for monitoring and controlling processes. It combines dual-input functionality with both a physical keypad and a touchscreen, allowing operators to interact with the system through multiple methods.

Powered by 120 VAC, this terminal is built for durability in industrial environments. It supports the PanelBuilder 32 software, which facilitates the development of user-friendly interfaces for programmable logic controllers and other industrial devices.

Key Features

The 2711-B5A10 offers a 5.5-inch monochrome LCD display with a resolution of 256 x 128 pixels. The display area measures 120 x 60 mm (4.75 x 2.38 in.). The unit features a robust LED backlight with an expected life of 100,000 hours, ensuring long-term visibility without frequent replacement.

Operator input is managed through a combination of a touchscreen and a keypad. The keypad includes navigational keys (Up, Down, Left, Right), Enter and Escape keys, and ten function keys (F1 through F10). The touchscreen is rated for 1 million presses, supporting extensive use in high-traffic control rooms.

Performance and Capacity

This operator terminal is equipped with 170 KB of application runtime memory and 240 KB of nonvolatile memory for storing application objects, text, and bitmaps. It runs on PanelBuilder 32 software, which is compatible with the terminal's hardware specifications.

The device supports firmware versions ranging from 1.00 to 4.48. The unit is available in multiple series revisions, including A through H, allowing for specific configuration needs within the PanelView 550 family.

Installation and Compatibility

The 2711-B5A10 features embedded communication ports for DeviceNet and an RS-232 printer port. It is designed to communicate directly with Allen-Bradley controllers and other compatible industrial devices. The unit accepts 120 VAC input power, with a specified range of 85 to 264 VAC at 47 to 63 Hz.

For connectivity, the terminal uses the 2711-NC13 communication cable. Accessories such as function key legend inserts, anti-glare overlays, and mounting hardware are available to support installation. The unit weighs approximately 2.63 lbs (1.19 kg) and ships in dimensions of 14 x 11 x 8 inches.

Applications and Industries

The PanelView 550 2711-B5A10 is ideal for industrial control applications where a reliable, monochrome interface is sufficient for monitoring and data entry. It is commonly used in manufacturing, process control, and automation systems that require direct interaction with PLCs via DeviceNet.

As a discontinued product, this terminal remains a viable option for maintaining legacy systems or for applications where cost-effective, proven technology is preferred over newer color displays. Its robust build and long backlight life make it suitable for continuous operation in demanding industrial environments.
