What is the display size and type of the 2711-K10C15?

The 2711-K10C15 features a 10.1-inch multi-color display with a resolution of 640 x 480 pixels.

What communication ports are available on this terminal?

The terminal is equipped with a ControlNet communication port and an RS-232 printer port.

What is the memory capacity of the 2711-K10C15?

According to the manufacturer's specifications, the terminal has 1008 KB of nonvolatile memory and 310 KB of RAM.

What type of enclosure is the 2711-K10C15 designed for?

The terminal is designed for a NEMA Type 12/13 or 4X enclosure.

What software is used to configure the 2711-K10C15?

The terminal is configured using PanelBuilder 32 software.

What is the current lifecycle status of the 2711-K10C15?

The 2711-K10C15 is discontinued/obsolete.

Is the Allen-Bradley 2711-K10C15 new or used?

We offer the 2711-K10C15 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 2711-K10C15?

The 2711-K10C15 operates across 0 to 55 degrees celsius.

What is the Allen-Bradley 2711-K10C15?

The 2711-K10C15 is part of the Allen-Bradley Panelview 1000 line.

Manufacturer	Rockwell Automation (Allen-Bradley)
Product Line	Panelview 1000
Part Number	2711-K10C15
Display Size	10.1 in.
Display Color	Multi-Color
Input Type	Keypad
Communication Port	ControlNet
Printer Port	RS-232
Input Power	85-264 Volts Alternating Current
Memory	256 Kilobytes
Software	PanelBuilder 32
Enclosure Type	NEMA Type 12/13 or 4X
Product Lifecycle Status	Discontinued/Obsolete
Weight	9.25 lbs (4.20 kg)
Operating Temperature	0 to 55 degrees celsius
Languages Supported	French, German, Italian, Spanish, English

Allen-Bradley

2711-K10C15

Q: What are the power requirements for the 2711-K10C15?

The unit requires 85-264 Volts Alternating Current (VAC) input power. The input power should be protected by a 15 amp fuse or circuit breaker.

Rate this product

HMIs Panelview 1000

The Allen-Bradley 2711-K10C15 from Rockwell Automation is a discontinued multi-color 10.1" keypad input Panelview 1000 terminal. It features a ControlNet communication port, RS-232 printer port, 256 KB memory, and PanelBuilder 32 software. This unit requires 85-264VAC power and has a NEMA Type 12/13 or 4X enclosure.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 2711-K10C15

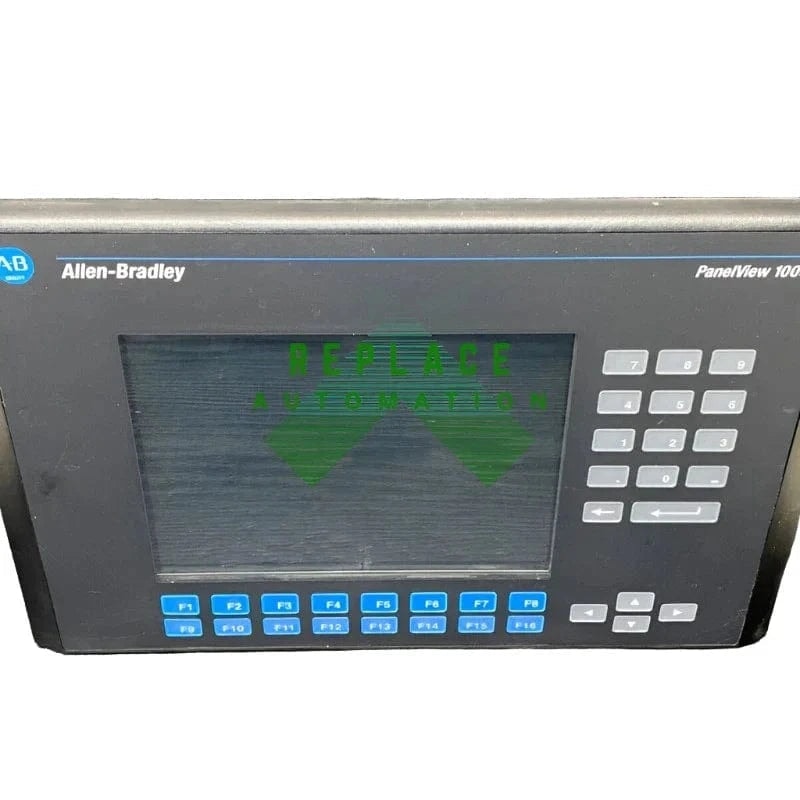

The Allen-Bradley 2711-K10C15 is a discontinued operator terminal from the PanelView 1000 series, designed for effective human-machine interaction in industrial environments. This unit features a 10.1-inch multi-color display and a keypad input method, allowing operators to input commands and navigate interfaces with precision.

Manufactured by Rockwell Automation, this terminal is part of the PanelView Standard line and is currently listed as obsolete. It is engineered to provide clear data visualization and reliable control for machinery operators.

Key Features

The 2711-K10C15 includes a 10.1-inch multi-color display that supports color graphics for attractive and clear data presentation. The keypad input type includes function keys, navigation keys, and numeric keys for direct operator control.

The terminal is housed in a durable NEMA Type 12/13 or 4X enclosure, providing protection for the internal circuitry. It supports five languages: English, French, German, Italian, and Spanish.

Performance and Capacity

This terminal operates on 85-264 Volts Alternating Current (VAC) input power. The input power should be protected by a 15 amp fuse or circuit breaker, and the terminal should have a separate power source from communication cables.

The unit is equipped with 256 KB of memory as specified in the product datasheet, though the manufacturer manual lists 1008 KB nonvolatile and 310 KB RAM for the PanelView 1000 series. The operating temperature range is 0 to 55 degrees Celsius, with a maximum ambient temperature of 135 degrees Celsius for ignition safety considerations.

Installation and Compatibility

The 2711-K10C15 features a ControlNet communication port and an RS-232 printer port for adaptable connectivity. The RS-232 port is used for printing and, in some configurations, for downloading applications. The terminal is compatible with PanelBuilder 32 software for configuration.

Installation requires mounting in an environment that provides IEC-1131-2 Pollution degree 2 protection. Adequate space must be allowed for proper ventilation, and the terminal should not be installed in environments where atmospheric gases have ignition temperatures less than 135 °C (275 °F).

Applications and Industries

As a PanelView 1000 series terminal, the 2711-K10C15 is suitable for industrial applications requiring robust operator interfaces. It is designed for use in machinery control and monitoring systems where reliable communication via ControlNet and local printing capabilities are essential.

The durable NEMA enclosure makes it suitable for environments with dust, water, or corrosive agents, depending on the specific NEMA rating installed. It is a standard choice for facilities looking to maintain or replace legacy PanelView 1000 systems.
