Brand	Allen-Bradley
Memory	240 KB
Series	A, B, C, D, E, F, G, H, I, J, K, and L
UNSPSC	43211903
Firmware	1.00-4.48
Backlight	2711-NL3
Input Type	Keypad
Input Power	85-264 VAC
Display Size	5 in.
Product Line	Panelview 600
Communication	RS-232 (DF1) and RS-232 Printer/Download
Display Color	Color
Shipping Weight	6 lbs.
Communication Cable	2711-NC14
Shipping Dimensions	14 x 11 x 8 in
Part Number/Catalog No.	2711-K6C16
Product Lifecycle Status*	Discontinued/Obsolete

What type of display does the 2711-K6C16 feature?

The 2711-K6C16 features a 5-inch color active matrix TFT display with a resolution of 320 x 234 pixels.

What communication ports are available on the 2711-K6C16?

The unit includes dual RS-232 ports: one for DF1 communication and a second for printer or application download purposes.

How many function keys are included on the keypad?

The 2711-K6C16 is equipped with 10 programmable function keys (F1 through F10), along with navigation and numeric buttons.

What is the power requirement for the 2711-K6C16?

The terminal requires an input voltage of 85–264 VAC at a frequency of 47–63 Hz.

What is the memory capacity of the 2711-K6C16?

The device has 240 KB of nonvolatile memory for application objects, text, and bitmaps, as well as 190 KB of application runtime memory.

Is the 2711-K6C16 currently in production?

No, the 2711-K6C16 is discontinued and obsolete.

Does the Allen-Bradley 2711-K6C16 come with a warranty?

Yes. The 2711-K6C16 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 2711-K6C16 a genuine Allen-Bradley part?

The 2711-K6C16 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 2711-K6C16 new or used?

We offer the 2711-K6C16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 2711-K6C16?

The 2711-K6C16 is part of the Allen-Bradley Panelview 600 line.

How fast does the 2711-K6C16 ship?

In-stock orders for the 2711-K6C16 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

Allen-Bradley

2711-K6C16

Rate this product

HMIs Panelview 600

The Allen-Bradley 2711-K6C16 is a versatile Panelview 600 HMI with a 5-inch color display and keypad input. It supports RS-232 communication and has 240 KB memory, with power requirements of 85-264 VAC. Though now discontinued, its durable design accommodates a variety of industrial applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 2711-K6C16

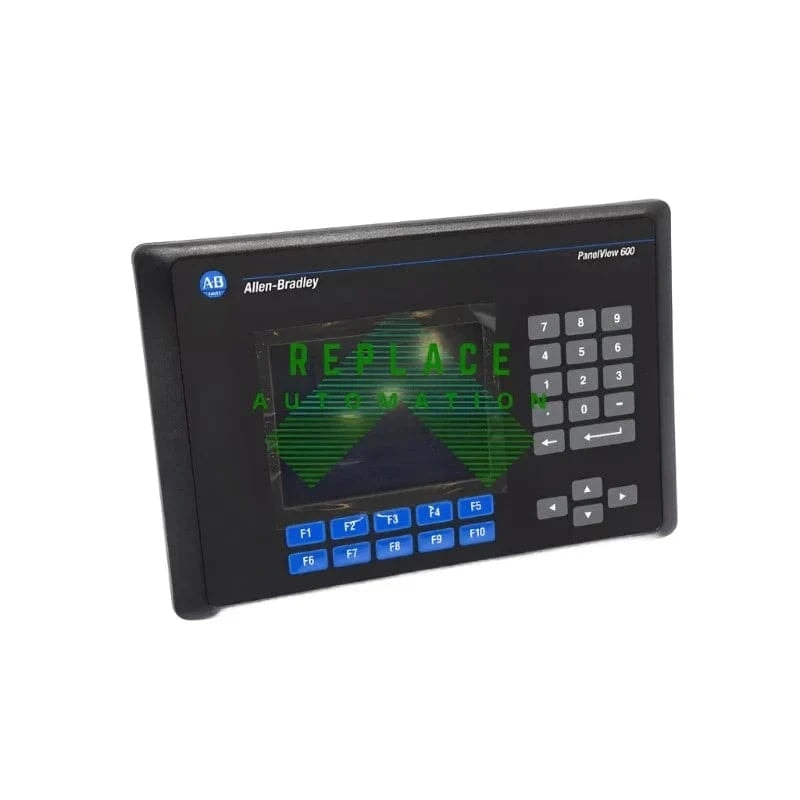

The Allen-Bradley 2711-K6C16 is a PanelView 600 Standard Operator Terminal designed for industrial machine interfacing. This discontinued HMI features a 5-inch color active matrix TFT display with a resolution of 320 x 234 pixels, providing clear visual feedback for operators. It is powered by an external 85-264 VAC supply and is housed in a durable NEMA Type 12/13, 4X enclosure suitable for indoor use.

Key Features

This operator terminal includes a keypad assembly with ten programmable function keys (F1–F10), navigation keys, and numeric buttons for data input and object selection. The unit features a color display that supports color-coded graphics and animation to indicate device status and alarm criticality. Status indicators include a green COMM light and a red Fault light to assist in troubleshooting.

Performance and Capacity

The 2711-K6C16 is equipped with 240 KB of nonvolatile memory for application objects, text, and bitmaps, along with 190 KB of application runtime memory. The display backlight has a 50,000-hour half-life at 25 °C (77 °F). The unit operates on an input voltage range of 85–264 VAC at a frequency of 47–63 Hz. The approximate shipping weight is 4.50 lbs (2.04 kg), with dimensions of 14 x 11 x 8 inches.

Installation and Compatibility

Communication is handled via dual RS-232 ports: one for DF1 protocol and one for printer or download functions. The DF1 port is a 9-pin male connector compatible with SLC 500, PLC-5, or MicroLogix controllers that support full-duplex communication. The printer port allows for application transfer between a computer and the terminal or connection to a printer, using the 2711-NC14 communication cable. The terminal is compatible with PanelBuilder 32 software and is available in Series A through L.

Applications and Industries

As a compact electronic device, the 2711-K6C16 is suitable for a variety of industrial applications requiring reliable human-machine interaction. Its robust design and color display make it effective for monitoring complex machine operations and alarms in indoor industrial environments. The unit is currently discontinued by the manufacturer, making it a legacy component for existing PanelView 600 installations.
