| Display type | Grayscale TFT LCD display. |
| Display color | Monochrome display. |
| Input voltage | AC input voltage. |
| Input and output | Keypad and touchscreen input with USB peripheral ports. |
| Keypad | Keypad rated for 1 million presses, with F1 to F10 function keys, numeric input, and navigation. |
| Touch input | Analog resistive touchscreen. |
| Processor speed | 1 GHz processor speed. |
| Operating system | Windows CE 6 operating system. |
| Firmware | Firmware versions 7.00 to 8.10. |
| Communication interfaces | Embedded Ethernet and RS-232 communication interfaces. |
| Communication modules | May be installed with Data Highway Plus (DH+) and Remote I/O (RIO) modules. |
| Shipping weight | 6 pounds. |
| Lifecycle status | End of life. |
| Manufacturer status | Discontinued by manufacturer. |
| Manufacturer | Allen Bradley. |
| Brand | Allen-Bradley. |
| Part number | 2711P-B6M20A8. |
| Revisions | Revision A and Revision X are listed for this part number. |
What is the Allen-Bradley 2711P-B6M20A8?

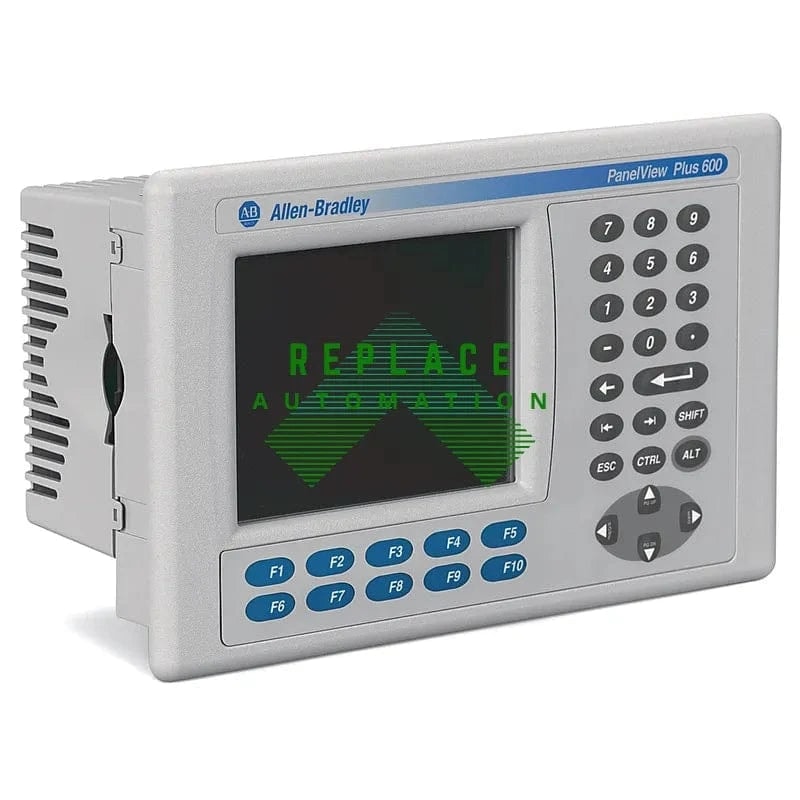

The 2711P-B6M20A8 is a PanelView Plus 6 terminal from Allen Bradley, featuring a 5.7-inch monochrome display and keypad and touchscreen input.
What display does the 2711P-B6M20A8 provide?
It has a 5.7-inch monochrome display with a 320 x 240 resolution and 16-level gray display.
What input methods are available on this terminal?
The terminal provides keypad and touchscreen input. The touchscreen is analog resistive, and the keypad includes F1-F10 function keys, numeric input, and navigation.
What communication options are included?
The terminal includes Ethernet and RS-232 communication options, with embedded Ethernet and RS-232 interfaces.
What software is supported?
FactoryTalk View Machine Edition is supported for operator terminals, and FactoryTalk View Studio for Machine Edition software is also listed.
What firmware versions are compatible?
The terminal is compatible with firmware versions 7.00 to 8.10.
What processor and memory are specified?
The terminal has a 1 GHz processor. Its system memory is specified as 64 MB to 256 MB of RAM, compared with earlier models.
What revisions are available for this part number?
The listed revisions include 2711P-B6M20A8 Ser A, also identified as 2711P-B6M20A8/A, and 2711P-B6M20A8X, also identified as 2711P-B6M20A8/X.
Is the part still in production?
The part is listed as end of life and discontinued by the manufacturer.
Can the terminal display PDF files?
The embedded Windows CE 6.0 supports files with the .pdf extension.
What warranty is included?
The 2711P-B6M20A8 includes a free 2-year DO Supply warranty, with an optional 3-year warranty available at checkout.
What spacing and environmental conditions are specified?
Proper spacing around the HMI is required for ventilation and connections. The specified temperature around the HMI is 32 to 131 degrees Fahrenheit.
Does the Allen-Bradley 2711P-B6M20A8 come with a warranty?
Yes. The 2711P-B6M20A8 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 2711P-B6M20A8 a genuine Allen-Bradley part?
The 2711P-B6M20A8 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 2711P-B6M20A8 new or used?
We offer the 2711P-B6M20A8 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 2711P-B6M20A8?
The 2711P-B6M20A8 runs on AC input voltage..
What is the Allen-Bradley 2711P-B6M20A8?
The 2711P-B6M20A8 is part of the Allen-Bradley Panelview Plus 600 line.
2711P-B6M20A8
The Allen-Bradley 2711P-B6M20A8 is a Panelview 6 Plus terminal featuring a 5.7-inch monochrome display, both keypad and touchscreen input, and Ethernet/RS-232 communication options. This operator interface has a 256 MB RAM, uses FactoryTalk View ME software, and operates on a 1 GHz processor, compatible with firmware versions 7.00 to 8.10.
