Is the Allen-Bradley 2711P-RDT10C new or used?

We offer the 2711P-RDT10C in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 2711P-RDT10C?

The 2711P-RDT10C runs on 100 to 240 Volts AC and is rated at 160 VA max.

What is the Allen-Bradley 2711P-RDT10C?

The 2711P-RDT10C is an Allen-Bradley Panelview Plus 1000 Display Module.

Brand	Allen-Bradley
Series	Panelview Plus 1000 series
UNSPSC	43211902
Graphics	18-Bit
Software	FactoryTalk Machine Edition
Enclosure	NEMA, UL or IP-rated
Dimensions	224 x 375 millimeters
Input Type	Touchscreen
Display Size	10.4 inches
Display Type	Color
Product Type	Display Module
Input Voltage	100 to 240 Volts AC
Operating System	Windows CE 4.1
Power Consumption	160 VA max
Communication Ports	RS-232 and Ethernet
Part Number/Catalog No.	2711P-RDT10C

Allen-Bradley

2711P-RDT10C

Rate this product

HMIs Panelview Plus 1000

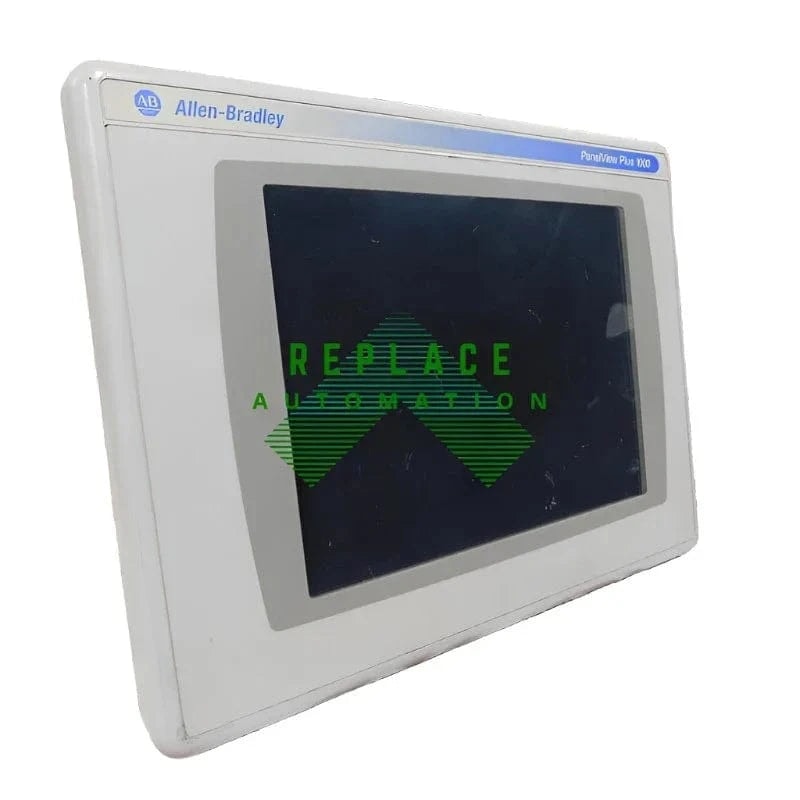

The Allen-Bradley 2711P-RDT10C is a 10.4-inch color display module from the Panelview Plus 1000 series, featuring touchscreen input and running on Windows CE 4.1. Designed for machine control, it offers 18-bit graphics, RS-232 and Ethernet ports, and operates within 100 to 240 Volts AC, encased in a durable enclosure.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 2711P-RDT10C

The Allen-Bradley 2711P-RDT10C is a high-resolution display module that is part of the PanelView Plus series. It's a reliable and versatile operator interface designed to provide a clear and efficient user interaction platform for monitoring, managing, and displaying information in various industrial applications. The unit features a 10.4-inch color TFT active matrix display with a touchscreen input, offering a user-friendly interface for operators in industrial environments.

Technical Specifications

The 2711P-RDT10C boasts an SVGA 800 x 600 pixels screen resolution, which allows for sharp and vivid visuals. It supports 18-bit color graphics which makes it capable of displaying a wide range of colors, an important feature for differentiating between screen elements in complex control environments. Furthermore, the touchscreen offers an analog resistive touch capability, which makes it easy to operate with fingers, gloved hands, or a stylus. This makes it a flexible solution for various industrial settings.

Integration and Compatibility

Integrating seamlessly with the PanelView Plus logic modules, the 2711P-RDT10C offers a versatile solution for users seeking to upgrade or expand their existing operator interface system. The display module works in conjunction with Allen-Bradley's FactoryTalk View Machine Edition software and offers compatibility with various communication protocols, enhancing its ability to function in a wide range of industrial control systems.

HMI Functionality

The 2711P-RDT10C serves as a human-machine interface (HMI) that provides operators with a graphical visualization of the operating system and real-time data. This module facilitates efficient interaction between the operator and machines, which is crucial for process adjustments, system monitoring, and quick diagnostics, helping to increase productivity and reduce downtime in industrial processes.

Durability and Industrial Suitability

Designed to withstand the rigorous conditions of industrial environments, the 2711P-RDT10C is built with a durable casing that provides a degree of protection against dust and water. Its construction adheres to NEMA and IP ratings suitable for industrial settings, which ensures that the display module can operate reliably even in harsh conditions, including exposure to temperature extremes, vibration, and other environmental factors common in industrial sites.
