Is the Allen-Bradley 5069-OBV8S new or used?

We offer the 5069-OBV8S in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 5069-OBV8S?

The 5069-OBV8S is an Allen-Bradley CompactLogix 5069 Safety Configurable Output.

How fast does the 5069-OBV8S ship?

In-stock orders for the 5069-OBV8S ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

Type	Safety Configurable Output
Brand	Allen-Bradley
Voltage	24V DC
Category	IO Modules
Sub Brand	Compact GuardLogix
Special Features	Conformally Coated
No of Inputs/Outputs	8

Allen-Bradley

5069-OBV8S

Rate this product

PLCs CompactLogix 5069

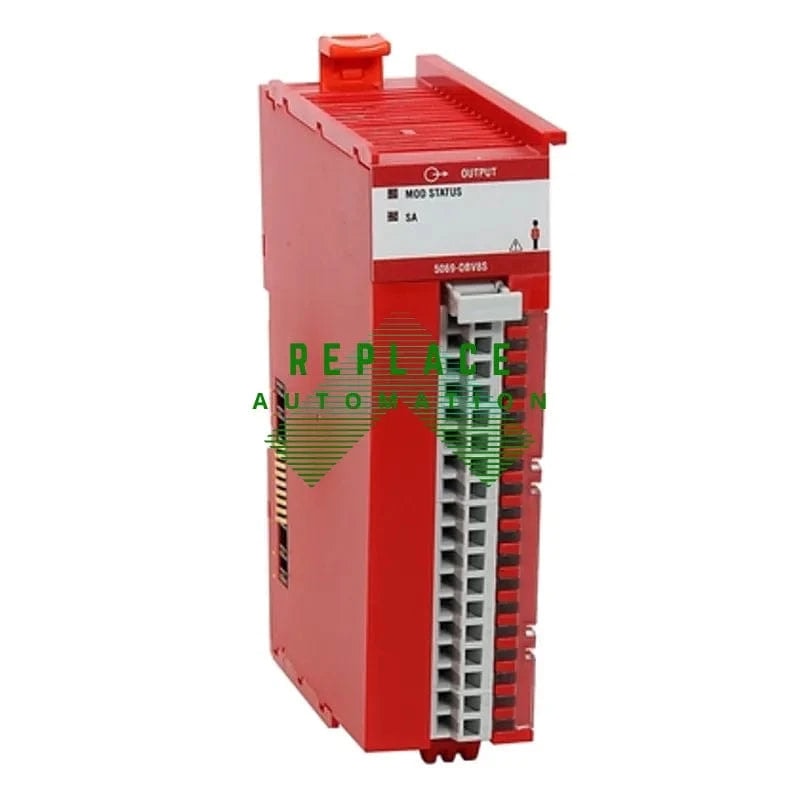

The Allen-Bradley 5069-OBV8S is a conformally coated Compact GuardLogix IO Module that features 8 configurable 24V DC safety outputs, suitable for sourcing or bipolar operations. It is designed to maintain safety and reliability in harsh industrial environments, ensuring secure and flexible output configurations.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Introduction to Allen-Bradley 5069-OBV8S

The Allen-Bradley 5069-OBV8S is a state-of-the-art digital output module designed for use in industrial control systems. Manufactured by Rockwell Automation, it is part of their CompactLogix 5000 series. This module is specifically tailored for applications that require high-speed and synchronized outputs, making it an ideal component for automation processes with stringent timing demands.

Technical Specifications

The 5069-OBV8S module features eight output channels that can be used to control a variety of devices such as actuators, relays, and indicators. Each output is independently isolated, minimizing the risk of electrical interference between channels. It operates at a voltage range of 10-30V DC and offers safety features, including overcurrent protection, to ensure longevity and reliability of the connected devices and the module itself.

Integration and Compatibility

This output module seamlessly integrates with the CompactLogix 5000 controllers and is compatible with the Studio 5000 software, which is used to program and configure the device. This compatibility ensures a smooth and flexible implementation into existing Allen-Bradley systems. Additionally, the module utilizes a point-to-point connection method, thereby streamlining the installation process and simplifying maintenance tasks.

Features and Benefits

Among its many features, the Allen-Bradley 5069-OBV8S boasts a high-density design that saves valuable panel space. Furthermore, its solid-state design ensures a high degree of environmental resilience and improves the longevity of the system by removing the typical wear-and-tear associated with mechanical parts. The module also includes LED indicators that provide immediate diagnostic feedback to facilitate troubleshooting and reduce downtime.

Applications

The diverse capabilities and robust design of the 5069-OBV8S make it suitable for a wide range of applications in many industries, such as automotive, material handling, and packaging. It is particularly well-suited for tasks that require precise control and synchronization, such as motion control systems. Its reliability and precision enhance the efficiency of automated processes, delivering consistent performance and contributing to overall operational excellence.
