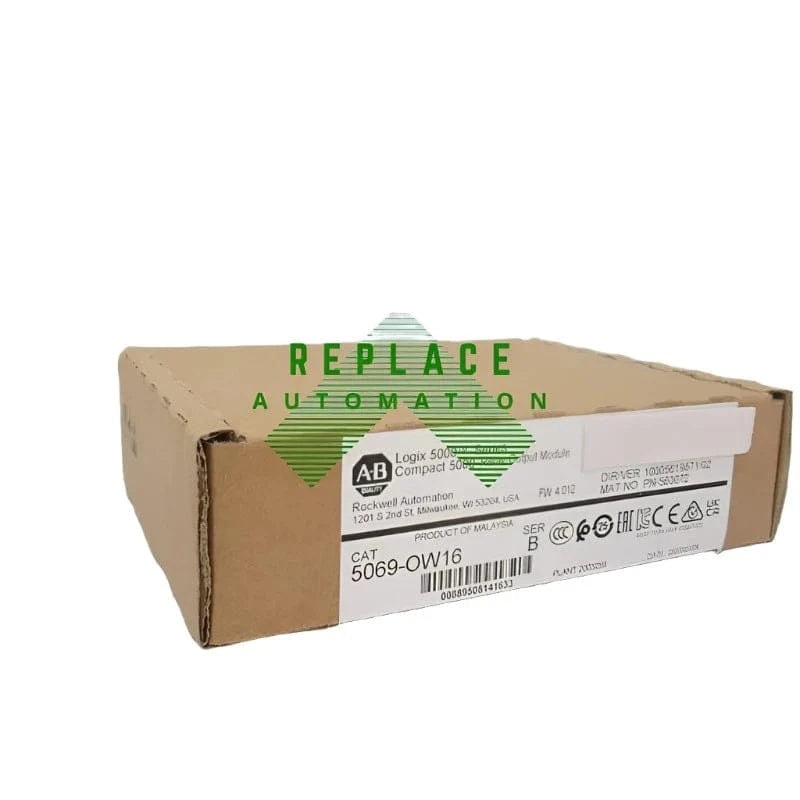

Is the Allen-Bradley 5069-OW16 new or used?

We offer the 5069-OW16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 5069-OW16?

The 5069-OW16 is an Allen-Bradley CompactLogix 5069 Relay Output.

Brand	Allen-Bradley
Weight	0.53 lbs (240 g)
Dimensions	5.4 x 1.4 x 4.2 in (138 x 36 x 105 mm)
Module Type	Relay Output
Manufacturer	Rockwell Automation
Enclosure Type	None (Open Style)
Number of Inputs	N/A
Voltage Category	N/A
Number of Outputs	16 (2 Groups of 8) N.O.
Power Dissipation	3.0 Watts
CIP Sync Supported	Yes
Input Voltage Range	N/A
Output Voltage Range	5-264 Volts AC or 5-125 Volts DC
Part Number/Catalog No.	5069-OW16
Pattern Matching Supported	Yes

Allen-Bradley

5069-OW16

Rate this product

Ready to ShipPLCs CompactLogix 5069

The Rockwell Automation Allen-Bradley 5069-OW16 is a compact relay output module with 16 outputs, supporting 5-264V AC or 5-125V DC. It features CIP Sync, pattern matching, dissipates 3.0 watts, and has dimensions of 5.4 x 1.4 x 4.2 inches, weighing 0.53 lbs.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Introduction to Allen-Bradley 5069-OW16

The Allen-Bradley 5069-OW16 is a compact output module designed for use in industrial applications. It is part of the CompactLogix 5000 series of controllers and provides a reliable solution for managing outputs in automated systems. The module features sixteen relay outputs and is specifically engineered to meet the demanding needs of modern control systems, offering flexibility and high performance.

Technical Specifications

The 5069-OW16 output module carries technical specifications that make it suitable for a range of applications. It supports a voltage range suitable for many control systems, making it versatile for use in different environments. Each relay output can handle a variety of loads, both resistive and inductive. The module is also designed to easily integrate with other CompactLogix components through the backplane, enabling efficient communication within the control system architecture.

Installation and Usage

Installation of the Allen-Bradley 5069-OW16 is straightforward, thanks to its design that allows it to slide into the CompactLogix chassis. This module is typically used for controlling devices such as motors, lights, and solenoids. It is ideal for applications where reliable relay output is needed. For safety and optimal performance, the module should be installed and handled by trained personnel following the guidelines provided by the manufacturer.

Features and Benefits

The 5069-OW16 offers several features that benefit users, including diagnostics, which help in monitoring the health and status of the outputs, and a robust build quality designed to withstand harsh industrial environments. Its compact size conserves space in control cabinets, and the module’s compatibility with the Studio 5000 Logix Designer® software streamlines programming and configuration processes. Overall, the Allen-Bradley 5069-OW16 is a durable and efficient solution for output control in automated systems.
