| variant | Standard version |
| EMC filter | Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C2 Integrated 492.13 ft (150 m) EN/IEC 61800-3 category C3 |
| Option card | Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink |
| Line current | 33.4 A 380 V normal duty) 28.9 A 480 V normal duty) 27.7 A 380 V heavy duty) 24.4 A 480 V heavy duty) |
| Apparent power | 24 kVA 480 V normal duty) 20.3 kVA 480 V heavy duty) |
| Motor power kW | 18.5 kW normal duty) 15 kW heavy duty) |
| Safety function | STO (safe torque off) SIL 3 |
| Type of cooling | Forced convection |
| Range of Product | Altivar Process ATV600 |
| Supply frequency | 50...60 Hz - 5...5 % |
| Device short name | ATV630 |
| Product destination | Asynchronous motors Synchronous motors |
| Switching frequency | 2...12 kHz adjustable 4...12 kHz with derating factor |
| Degree of protection | UL type 1 UL 508C |
| Discrete input logic | 16 preset speeds |
| Prospective line Isc | 50 kA |
| IP degree of protection | IP21IEC 61800-5-1 IP21IEC 60529 |
| Continuous output current | 39.2 A 4 kHz normal duty 31.7 A 4 kHz heavy duty |
| Product or Component Type | Variable speed drive |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Maximum Horse Power Rating | 25 hp normal duty 20 hp heavy duty |
| Nominal switching frequency | 4 kHz |
| communication port protocol | Modbus TCP Modbus serial Ethernet |
| Product Specific Application | Process and utilities |
| Speed drive output frequency | 0.1…500 Hz |
| Synchronous motor control profile | Permanent magnet motor Synchronous reluctance motor |
| Asynchronous motor control profile | Optimized torque mode Variable torque standard Constant torque standard |
Does the Schneider Electric ATV630D18N4 come with a warranty?
Yes. The ATV630D18N4 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this ATV630D18N4 a genuine Schneider Electric part?
The ATV630D18N4 is sourced and verified independently. Replace Industrial is not an authorized distributor, affiliate, or representative of Schneider Electric, and all warranties are provided directly by Replace Industrial.
Is the Schneider Electric ATV630D18N4 new or used?
We offer the ATV630D18N4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the ATV630D18N4?
The ATV630D18N4 is rated at 18.5 kW normal duty) 15 kW heavy duty), carries UL type 1 UL 508C protection, and draws 39.2 A 4 kHz normal duty 31.7 A 4 kHz heavy duty.
What is the Schneider Electric ATV630D18N4?
The ATV630D18N4 is a Schneider Electric ATV 600 Variable speed drive.

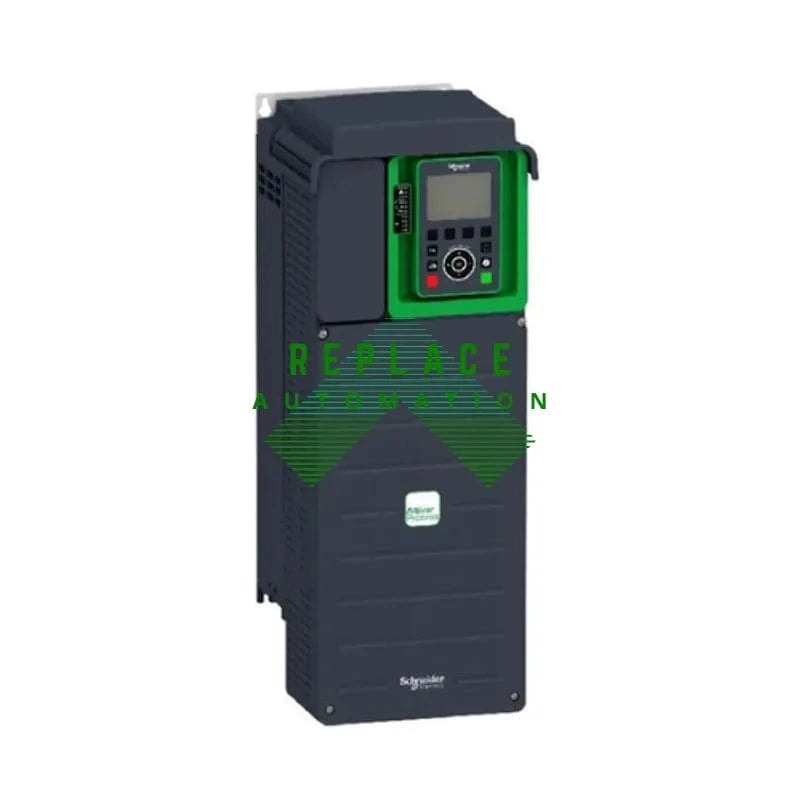

ATV630D18N4
The ATV630D18N4 is a variable speed drive from the Altivar Process ATV600 series, designed for both asynchronous and synchronous motors in process utilities. With an 18.5kW (25hp) output, it operates on 380 to 480V supply and includes integrated EMC filters. Rated IP21 and UL type 1, it boasts built-in safety features and multiple communication protocols for versatile control.
