Is the Schneider Electric ATV630D37N4 new or used?

We offer the ATV630D37N4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the ATV630D37N4?

The ATV630D37N4 is rated at 37 kW normal duty) 30 kW heavy duty), carries UL type 1 UL 508C protection, and draws 74.5 A 4 kHz normal duty 61.5 A 4 kHz heavy duty.

What is the Schneider Electric ATV630D37N4?

The ATV630D37N4 is a Schneider Electric ATV 600 Variable speed drive.

variant	Standard version
EMC filter	Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C2 Integrated 492.13 ft (150 m) EN/IEC 61800-3 category C3
Option card	Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Line current	66.2 A 380 V normal duty) 57.3 A 480 V normal duty) 54.8 A 380 V heavy duty) 48.3 A 480 V heavy duty)
Apparent power	47.6 kVA 480 V normal duty) 40.2 kVA 480 V heavy duty)
Motor power kW	37 kW normal duty) 30 kW heavy duty)
Safety function	STO (safe torque off) SIL 3
Type of cooling	Forced convection
Range of Product	Altivar Process ATV600
Supply frequency	50...60 Hz - 5...5 %
Device short name	ATV630
Product destination	Asynchronous motors Synchronous motors
Switching frequency	2...12 kHz adjustable 4...12 kHz with derating factor
Degree of protection	UL type 1 UL 508C
Discrete input logic	16 preset speeds
Prospective line Isc	50 kA
IP degree of protection	IP21IEC 61800-5-1 IP21IEC 60529
Continuous output current	74.5 A 4 kHz normal duty 61.5 A 4 kHz heavy duty
Product or Component Type	Variable speed drive
[Us] rated supply voltage	380...480 V - 15...10 %
Maximum Horse Power Rating	50 hp normal duty 40 hp heavy duty
Nominal switching frequency	4 kHz
communication port protocol	Ethernet Modbus TCP Modbus serial
Product Specific Application	Process and utilities
Speed drive output frequency	0.1…500 Hz
Synchronous motor control profile	Permanent magnet motor Synchronous reluctance motor
Asynchronous motor control profile	Variable torque standard Constant torque standard Optimized torque mode

Schneider Electric

ATV630D37N4

Rate this product

Drives ATV 600

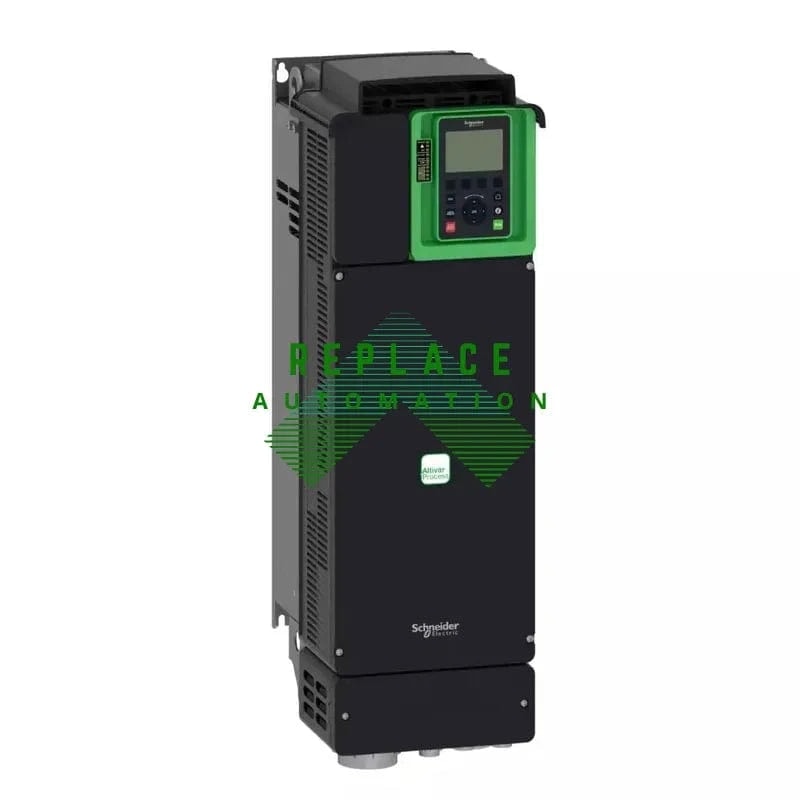

The ATV630D37N4 is a 37kW, 50hp variable speed drive from the Altivar Process ATV600 series, designed for asynchronous and synchronous motors within a 380 to 480V range. It features an integrated EMC filter, IP21 protection, forced convection cooling, and standard STO safety. It is UL type 1 certified and supports Ethernet and Modbus communication protocols.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of the Altivar Process ATV630D37N4

The Altivar Process ATV630D37N4 is a variable speed drive designed for industrial applications. Built by Schneider Electric, this unit is part of the ATV630 series that is particularly engineered for fluid management systems. It supports three-phase synchronous and asynchronous motors, providing efficient and reliable control for a range of operational needs in sectors such as water & wastewater, oil & gas, mining, and food & beverage.

Technical Specifications

The ATV630D37N4 operates with a supply voltage of 380 to 480VAC and has a normal duty power rating of 37KW, with a heavy-duty rating of 30KW. It also features an embedded energy-saving function, which optimizes energy consumption by adjusting the motor control based on the load requirement. Moreover, it is equipped with a graphical display for easy programming and monitoring. Its IP21 rating ensures protection from touch and the ingress of solid objects, while still needing to be protected from water.

Extensive Range of Features

A hallmark of the ATV630D37N4 is its array of features aimed at enhancing operational efficiency and reducing downtime. It includes multiple I/O connections and communication protocols such as EtherNet/IP, Modbus, and CANopen for seamless integration with existing systems. Additionally, the drive's onboard diagnostics and preventative maintenance functions allow for proactive management of system performance and longevity.

Energy Efficiency and Environmental Compliance

Designed with sustainability in mind, the Altivar ATV630D37N4 promotes energy efficiency and helps users comply with global environmental standards. Its ability to adjust motor speed and torque in real-time translates to significant reductions in energy consumption, contributing to lower operational costs and carbon footprint. Also, it complies with various international standards, including the RoHS directive, reinforcing Schneider Electric's commitment to environmental responsibility.

Easy Installation and Integration

The Altivar Process ATV630D27N4 is crafted for simplicity in set-up and integration. It comes with an intuitive keypad interface, easy wiring features, and a configuration software tool that allows for swift commissioning. Its compact design is suitable for tight spaces, and the use of detachable terminals simplifies maintenance and servicing tasks, ensuring minimal disruption to industrial processes.
