| Brand | Allen-Bradley |
| Series | SLC 500 |
| Outputs | 16 |
| Module Type | Digital DC Output Module |
| Applications | TTL Loads, Sink-Load Displays |
| Manufacturer | Rockwell Automation |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Voltage Range | 5 Volts DC Sink |
| Current/Module | 0.384 amps |
| Current/Output | 0.024 amps |
| Signal Delay, ON | On = 0.25 mA |
| Backplane Current | (5 Volts)180 milliamps |
| Off-state voltage | 4.5...5.5V DC |
| Signal Delay. OFF | Off = 0.50 mA |
| Programming Software | RSLogix 500 |
| Part Number/Catalog No. | 1746-OG16 |
| Backplane Current (5 Volts) | 180 milliamps |
Does the Allen-Bradley 1746-OG16 come with a warranty?
Yes. The 1746-OG16 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1746-OG16 a genuine Allen-Bradley part?
The 1746-OG16 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1746-OG16 new or used?
We offer the 1746-OG16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What is the Allen-Bradley 1746-OG16?
The 1746-OG16 is an Allen-Bradley SLC 500 Digital DC Output Module.
How fast does the 1746-OG16 ship?
In-stock orders for the 1746-OG16 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.
1746-OG16

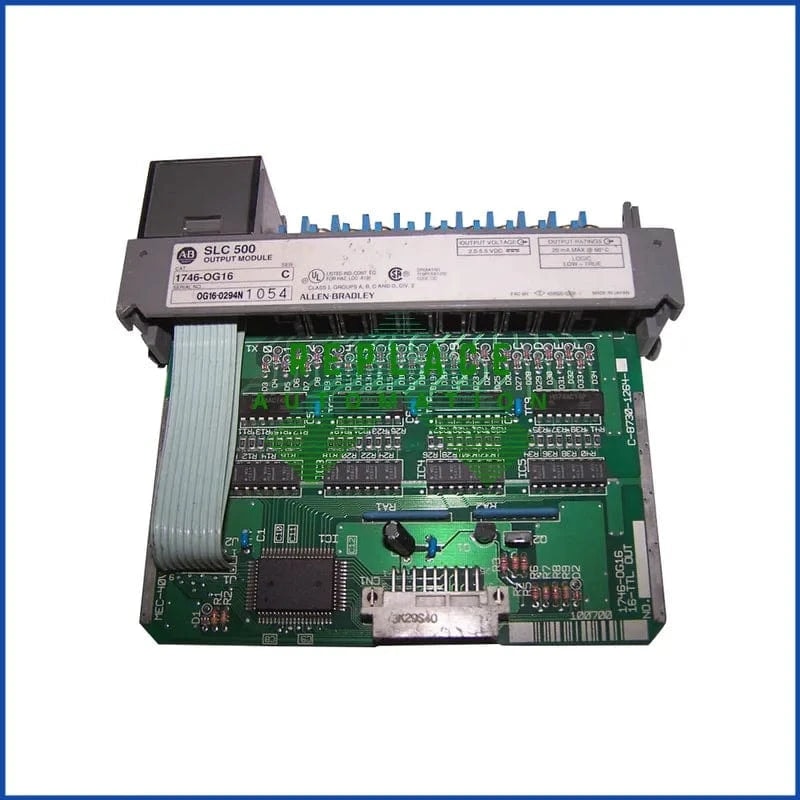

The Allen-Bradley 1746-OG16 is a digital DC output module from Rockwell Automation's SLC 500 series, offering 16 sink outputs and compatibility with TTL loads. Designed for efficient output signal control, it handles 5V DC, with a 0.024 amps per output current and a rapid step response for reliable performance in industrial applications.
