| Brand | Allen-Bradley |
| Series | SLC 500 |
| Weight | 0.37 pounds (168 grams) |
| Location | Slot 0 |
| Dimension | 172 x 38 x 146 mm (H x W x D) |
| Enclosure | Open |
| Dimensions | 5.72 x 1.37 x 5.15 inches |
| Module Type | Isolated Link Coupler |
| Installation | Panel Mounted |
| Manufacturer | Rockwell Automation |
| LED Indicator | Power LED |
| Rated Current | 190 mA |
| External Power | 24VDC |
| Isolation Voltage | 50 Volts Continuous |
| Thermal Dissipation | 2.49 Watts |
| Operating Temperature | 0 to 60 degrees Celsius |
| Communication Interface | Shielded Twisted-Pair |
| Communication terminals | DH485, Peripheral and CPU |
| Part Number/Catalog No. | 1747-AIC |
| Current Load (24 Volt DC) | 0.085 Amps |
| DH485 Communication Cable | Belden#3106 or #9842 |
| Backplane Current (5 Volts) | 470 milliamps |
| USB communication peripherals | 1747-UIC; 1747-C13 |
| RS232communication Peripherals | 1747-PIC; 1747-C10 |
| PCMCIA or 1784-PCMK communication peripherals | 1784-PCM4 |
What is the primary function of the Allen-Bradley 1747-AIC?
The 1747-AIC is an isolated link coupler designed to connect SLC 500 devices to DH-485 networks, facilitating communication between the controller and peripheral devices.
What type of communication interface does the 1747-AIC use?
The module features a shielded twisted-pair communication interface and supports both full-duplex and half-duplex DH-485 networks.
What power requirements does the 1747-AIC have?
The 1747-AIC requires 24 VDC external power. It draws a current load of 0.085 amps at 24 VDC and 470 milliamps at 5 VDC from the backplane.
What is the isolation voltage rating of the 1747-AIC?
The module provides 1500 VDC isolation between the communication cable and the SLC 500 devices or peripheral devices.
Which peripherals are compatible with the 1747-AIC?
The 1747-AIC supports 1747-PIC Personal Interface Converters and 1747-DTAM-E Data Table Axis Modules.
What are the operating and storage temperature ranges for the 1747-AIC?
The module operates at temperatures between 0°C and 60°C (32°F to 140°F). It can be stored at temperatures ranging from -40°F to 185°F.
What is the physical configuration of the 1747-AIC terminal block?
The module features a removable 6-position terminal block to facilitate easy connection management.
What are the physical dimensions and weight of the 1747-AIC?
The 1747-AIC measures 5.72 x 1.37 x 5.15 inches and weighs approximately 0.37 pounds (168 grams) according to the datasheet, though some sources list a weight of 1.31 lbs (0.60 kg).
Does the Allen-Bradley 1747-AIC come with a warranty?
Yes. The 1747-AIC is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1747-AIC a genuine Allen-Bradley part?
The 1747-AIC is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1747-AIC new or used?
We offer the 1747-AIC in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1747-AIC?
The 1747-AIC draws 190 mA and operates across 0 to 60 degrees Celsius.
What is the Allen-Bradley 1747-AIC?
The 1747-AIC is an Allen-Bradley SLC 500 Isolated Link Coupler.
1747-AIC

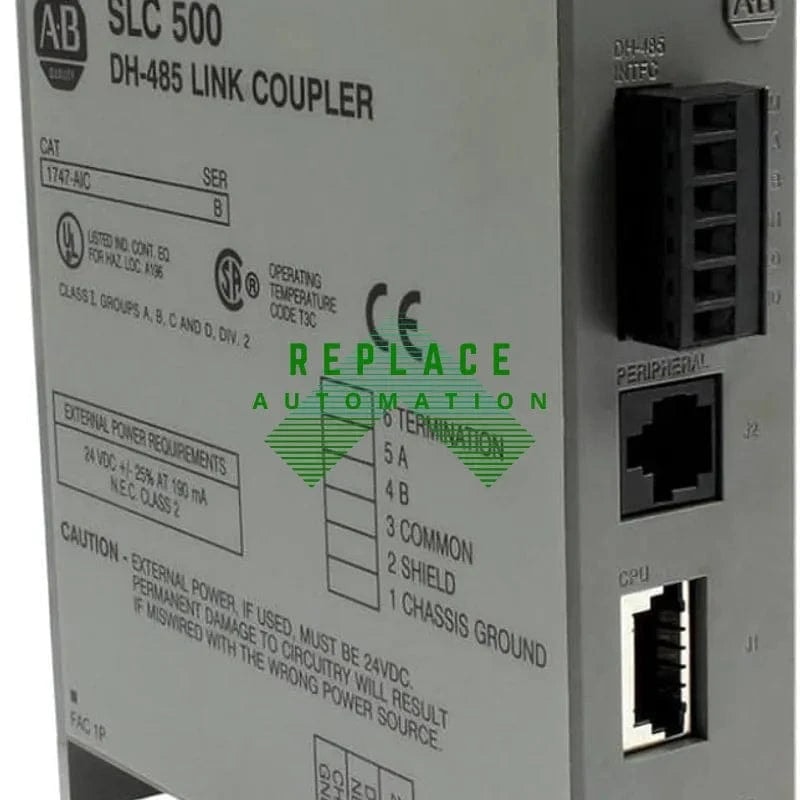

The Allen-Bradley 1747-AIC from Rockwell Automation is a module for SLC 500 systems, facilitating communication between devices through its isolated link coupler and shielded twisted-pair interface. This panel-mounted module, operating at 0-60°C, boasts LED indicators, requires 24VDC external power, and supports DH485 communication protocols, ensuring reliable and efficient network connectivity within industrial setups.
