Is the Allen-Bradley 1756-A13 new or used?

We offer the 1756-A13 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1756-A13?

The 1756-A13 is an Allen-Bradley ControlLogix 1756 Chassis.

How fast does the 1756-A13 ship?

In-stock orders for the 1756-A13 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10612598129284
Brand	Allen-Bradley
Slots	13
Series	ControlLogix
UNSPSC	32151704
Weight	4.2 pounds (1.9 kilograms)
Mounting	Horizontal
Enclosure	Open
Dimensions	24 x 30 x 8 inches
Module Type	Chassis
Manufacturer	Rockwell Automation
Part Number/Catalog No.	1756-A13
Power Dissipation (Max)	5.4 Watts
Backplane Current (5 Volts DC)	10 amps
Backplane Current (24 Volts DC)	2.8 Amps

Allen-Bradley

1756-A13

Rate this product

Ready to ShipPLCs ControlLogix 1756

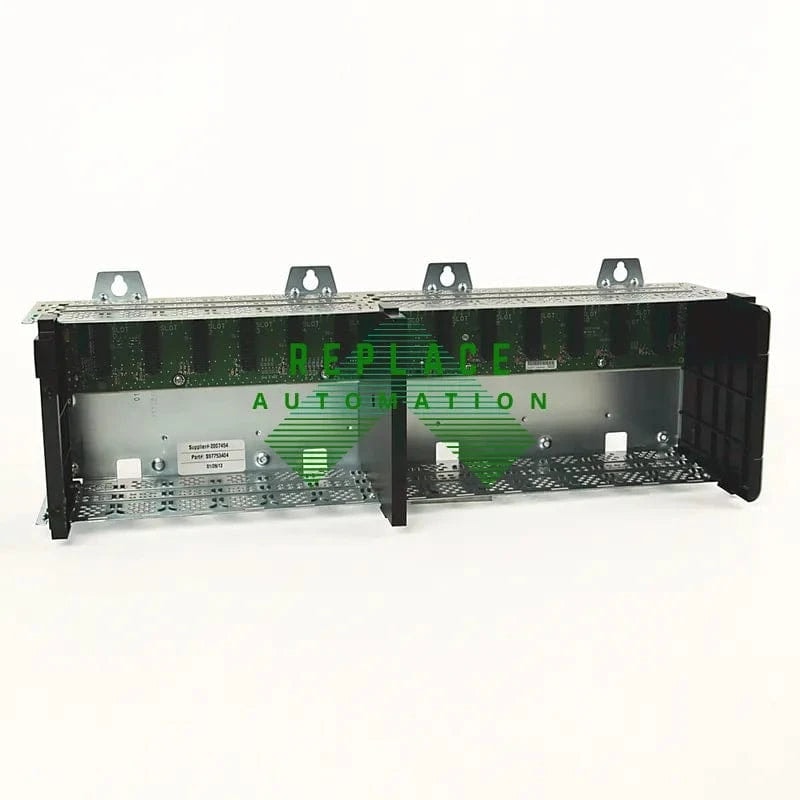

The Allen-Bradley 1756-A13, part of Rockwell Automation's ControlLogix series, is a 13-slot chassis designed for horizontal mounting with open enclosure. With dimensions of 24x30x8 inches and weighing 4.2 pounds, it supports a backplane current of 10 amps at 5 volts DC and 2.8 amps at 24 volts DC, while dissipating a maximum of 5.4 watts of power.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1756-A13

The Allen-Bradley 1756-A13 is a chassis designed to house modules in a ControlLogix system, which is a robust control solution manufactured by Rockwell Automation. It provides a sturdy platform for housing up to 13 different modules, which may include I/O modules, communication modules, power supplies, and processors. The 1756-A13 chassis is integral for setting up a scalable, modular control system that meets a variety of industrial automation requirements.

Design and Features

The 1756-A13 chassis is engineered for horizontal mounting and has a 13-slot design that can accommodate a range of ControlLogix modules. Its backplane provides a high-speed communication path between modules and allows for quick data exchange and processing, which is paramount in complex automation tasks. Moreover, the chassis is designed with a rugged construction to withstand harsh industrial environments commonly found in manufacturing and processing facilities.

System Configuration and Compatibility

For optimal performance, the Allen-Bradley 1756-A13 chassis must be used with compatible power supplies and processors from the ControlLogix family. It is also important to ensure that the firmware and software versions are compatible with the modules being used. The Rockwell Automation software, such as RSLogix 5000 or Studio 5000 Logix Designer, is typically employed for configuration, programming, and diagnostics of the ControlLogix system where the 1756-A13 chassis plays a central role.

Installation and Maintenance

Installing the 1756-A13 requires careful planning, particularly with regard to environmental considerations like temperature, humidity, and space. Adequate ventilation is necessary to maintain the longevity of the chassis and the modules it houses. Maintenance of the 1756-A13 is also straightforward, as the chassis allows easy insertion and removal of modules, which facilitates fast replacements and minimal downtime in the event of a failure or during system upgrades.
