| Brand | Allen-Bradley |
| Inputs | 16 Individually Isolated |
| Series | ControlLogix |
| Module Type | Fast Digital DC Isolated Input |
| Manufacturer | Rockwell Automation |
| Input Voltage | 12-24 Volts DC |
| Input Delay Time | 14 microseconds plus selected filter time |
| Backplane Current | 1.47 Watts |
| Power Dissipation | 3.8 Watts |
| Thermal Dissipation | 12.97 BTU per hour |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Current Draw (24 Volts) | 3 milliamps |
| Operating Voltage Range | 10-30 Voltage DC |
| Part Number/Catalog No. | 1756-IB16IF |
| Current Draw (5.1 Volts) | 275 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
Does the Allen-Bradley 1756-IB16IF come with a warranty?
Yes. The 1756-IB16IF is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-IB16IF a genuine Allen-Bradley part?
The 1756-IB16IF is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-IB16IF new or used?
We offer the 1756-IB16IF in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-IB16IF?
The 1756-IB16IF runs on 12-24 Volts DC and draws 3 milliamps.
What is the Allen-Bradley 1756-IB16IF?
The 1756-IB16IF is an Allen-Bradley ControlLogix 1756 Fast Digital DC Isolated Input.

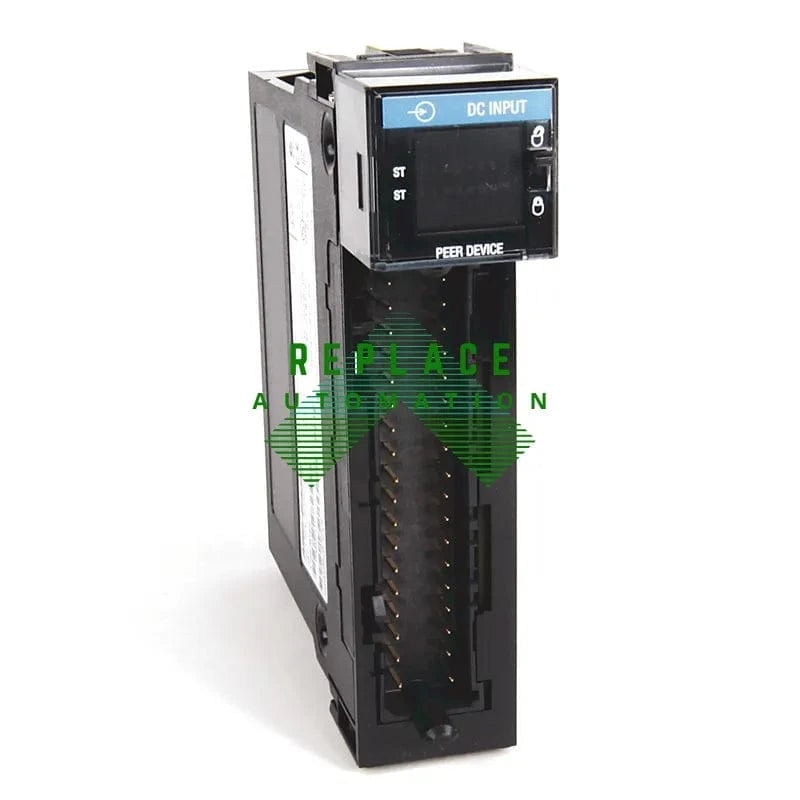

1756-IB16IF
The Allen-Bradley 1756-IB16IF is a fast digital DC isolated input module for the ControlLogix series by Rockwell Automation. Featuring 16 individually isolated inputs, it supports an input voltage of 10-30V DC at speeds with a 14 microsecond input delay. Designed for use with the RSLogix 5000 software, it ensures reliable and swift data acquisition in automated processes.
