1756-IF8I

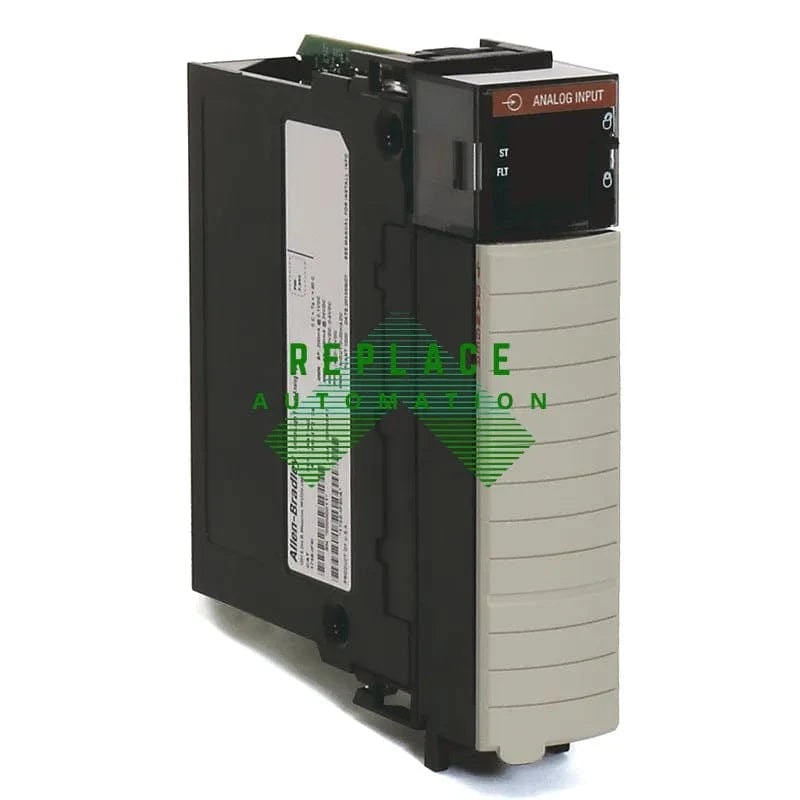

Allen-Bradley 1756-IF8I Overview

The Allen-Bradley 1756-IF8I module is an analog input module that belongs to the ControlLogix family of controllers. It is designed to interface with a variety of analog signals, providing high precision measurements for industrial process control applications. This module is widely used in industries that require accurate monitoring and control of parameters such as temperature, pressure, flow, and level.

Key Features and Specifications

The 1756-IF8I module provides 8 differential analog input channels, supporting a range of input types including current, voltage, and Heartbeat technology for signal diagnostics. Each channel is individually configurable, allowing for flexibility in handling diverse analog inputs. The module offers high-resolution data conversion, typically 16 bits, enabling fine-grain data acquisition. Additionally, it features overvoltage protection and onboard diagnostics to ensure reliable and robust performance in demanding environments.

Integration and Compatibility

As part of the Allen-Bradley ControlLogix system, the 1756-IF8I module is designed to easily integrate into a larger control solution. It uses the backplane of the ControlLogix chassis for communication, benefiting from high-speed data exchange with programmable automation controllers (PACs) and other I/O modules within the system. The module's seamless integration ensures that users can expand or modify their system as needed without major reconfiguration issues.

Programming and Configuration

The setup and configuration of the 1756-IF8I module are conducted using Rockwell Software's Studio 5000 Logix Designer application. This software tool provides an intuitive user interface for defining the input types, scaling data, and setting up alarms or event actions for each channel. The programming flexibility offered by the software complements the module's capability to accommodate various industrial scenarios.

Applications and Usage

The 1756-IF8I analog input module is utilized in a vast array of applications due to its versatility in handling different signal types and ranges. It is commonly found in sectors like oil and gas, pharmaceuticals, water treatment, and food and beverage manufacturing. Its primary use is for precision monitoring and control tasks, such as detecting small changes in sensor readings that could indicate potential issues in a given process.
