Is the Allen-Bradley 1769-L30ER new or used?

We offer the 1769-L30ER in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1769-L30ER?

The 1769-L30ER operates across 0Â° to +60Â°C (+32Â° to +140Â°F).

What is the Allen-Bradley 1769-L30ER?

The 1769-L30ER is an Allen-Bradley CompactLogix 1769 Processor Module.

UPC	10885630101276
Brand	Allen-Bradley
Memory	1 MB
Series	A and B
Battery	1747-BA
Mounting	DIN Rail; Panel Mounting
Software	RSLogix5000
Vibration	Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak
Wire Type	Copper-90 degrees Celsius
Module Type	Processor Module
Manufacturer	Industrial Automation / Allen-Bradley
Product Line	CompactLogix
Product Type	Programmable Automation Controller
Certification	cULH (Class I, Division 2)
Communication	Ethernet
Shipping Weight	4 pounds
Programming cable	RJ45 connector according to IEC 60603-7
Wire Size (Solid)	22 to 14 AWG
Communication ports	Two (2) Ethernet I/P; 1 USB
Non-Volatile memory	1784-SD1 card with 1 Gb of available memory (shipped with controller) ; 1784-SD2 card with 2 Gb of available memory (available for separate ordering)
Shipping Dimensions	11 x 8 x 6 inches
Programming Language	Relay ladder, Structured Text, Function block, SFC
Programming Software	RSLogix 5000 / Studio 5000 Logix Designer
Wire Size (Stranded)	22 to 16 AWG
No. of Ethernet Nodes	16
Operating Temperature	0Â° to +60Â°C (+32Â° to +140Â°F)
Part Number/Catalog No.	1769-L30ER
Power supply distance rating	4
Maximum number of I/Obanks supported	3 banks
Maximum number of I/Omodules supported	8 Modules
Replacement Terminal Block Part Number	1769-RTBN18

Allen-Bradley

1769-L30ER

Rate this product

PLCs CompactLogix 1769

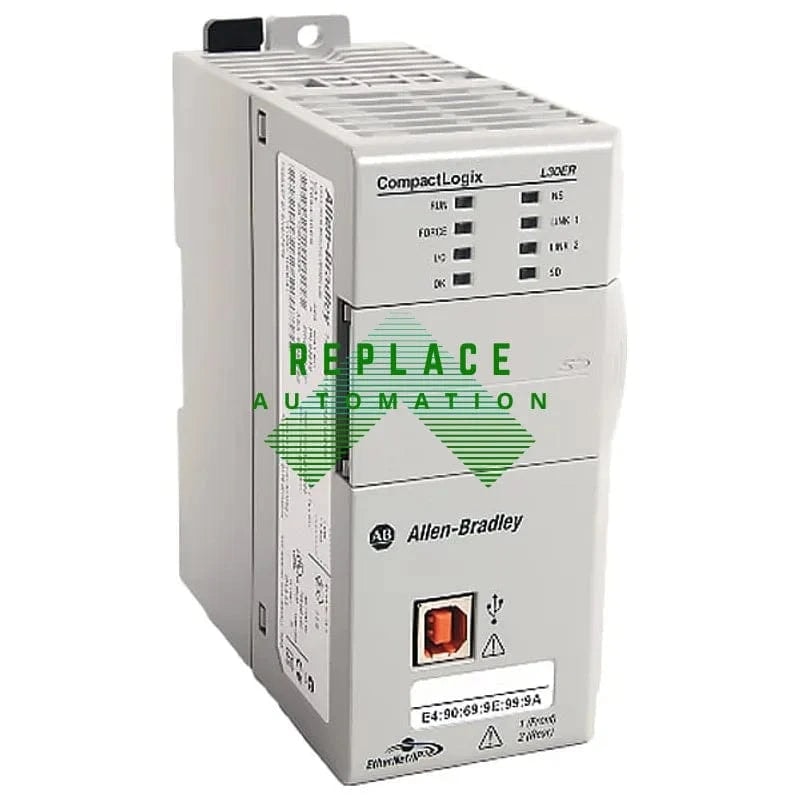

The Allen-Bradley 1769-L30ER is a CompactLogix Processor Module designed for advanced control tasks. Part of the 1769 product line, it offers 1MB memory, Ethernet connectivity with 16 node support, and can manage up to 8 I/O modules across 3 banks. Ideal for applications requiring a compact, powerful automation solution.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Allen-Bradically Overview

The Allen-Bradley 1769-L30ER is a compact, powerful programmable automation controller from Rockwell Automation's CompactLogix series. It serves as an integral part of an industrial control system facilitating automated processes and machine control with a small footprint. This controller is tailored for applications requiring a flexible and cost-effective solution without sacrificing performance and ease of use.

Technical Specifications

The 1769-L30ER features a dual-ethernet port that supports Device Level Ring (DLR) topologies, providing a resilient network infrastructure. It contains 1 MB of memory for user information, which allows efficient handling of moderately complex applications. Moreover, it supports up to 16 I/O modules, expanding its functionality in managing a variety of input and output signals. Its embedded motion capabilities make it suitable for controlling up to two axes of motion.

Programming and Compatibility

This controller is programmed using Rockwell’s proprietary software, RSLogix 5000 or Studio 5000 Logix Designer. These programming environments provide an array of tools for sequential control, process control, drive systems, and safety control. The 1769-L30ER works within the Rockwell Automation Integrated Architecture, streamlining integration with other Allen-Bradley products and enhancing interoperability with third-party equipment.

Compact Design and Mounting

With its compact form factor, the 1769-L30ER is suitable for space-constrained applications. The unit is designed for DIN rail or panel mounting, giving flexibility in installation. Its modular design permits easy system expansion and supports a variety of communication and I/O modules that easily snap together for quick configuration and setup.

Safety and Security

Safety and security are paramount in industrial controls. The 1769-L48ER complies with global standards and certifications, ensuring a high level of reliability and safety for both the processes it controls and the personnel operating them. Its built-in security features help safeguard against unauthorized access and provide peace of mind for the end-users.
