Is the Allen-Bradley 1769-IT6 new or used?

We offer the 1769-IT6 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1769-IT6?

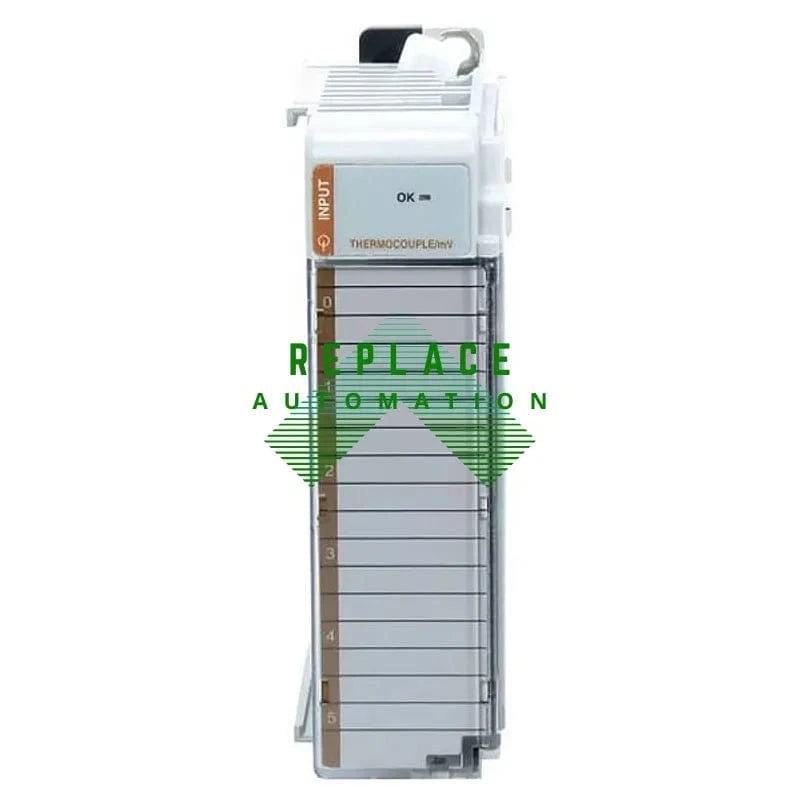

The 1769-IT6 is an Allen-Bradley CompactLogix 1769 Thermocouple Module.

How fast does the 1769-IT6 ship?

In-stock orders for the 1769-IT6 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10611320314424
Brand	Allen-Bradley
Series	A and B
Software	RSLogix5000
Wire Type	Copper-90 degrees Celsius
Input Type	Thermocouple
Module Type	Thermocouple Module
Manufacturer	Rockwell Automation
Product Line	CompactLogix
Converter Type	Delta Sigma
Shipping Weight	2 lbs.
Wire Size (Solid)	22-14 AWG
Communication Cable	6 Point
Shipping Dimensions	8 x 8 x 5 in.
Part Number/Catalog No.	1769-IT6
Replacement Door Label Part Number	1769-RL2 series B
Replacement Terminal Block Part Number	1769-RTBN18

Allen-Bradley

1769-IT6

Rate this product

PLCs CompactLogix 1769

The Rockwell Automation Allen-Bradley 1769-IT6 is a CompactLogix thermocouple module part of series A and B. Designed for temperature measurement, it supports copper wiring, interfaces with RSLogix5000 software, and communicates via a 6-point cable. It weighs 2 lbs. and measures 8 x 8 x 5 inches.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1769-IT6

The Allen-Bradley 1769-IT6 is a thermocouple/mV input module designed for use within industrial automation systems. It is part of the CompactLogix and MicroLogix 1500 systems, providing a compact solution for temperature measurement and data acquisition in various applications such as process control, machine monitoring, and environmental monitoring.

Thermocouple Input Types

This module supports a variety of thermocouple types, including J, K, T, E, R, S, B, and N, ensuring compatibility with a diverse range of temperature sensors. Additionally, it can also accept mV signals directly, allowing for flexibility in its use with different types of sensors and in different measurement scenarios.

Key Features

The 1769-IT6 module offers high-resolution temperature data conversion, cold junction compensation, and open-circuit and under/over-range detection features to ensure accurate and reliable readings. The module can convert the thermocouple or mV signals into digital data that can be easily integrated with control logic, providing operators with real-time temperature information.

Configuration and Compatibility

Configuring the 1769-IT6 is facilitated through RSLogix5000 (now Studio 5000 Logix Designer), which provides an intuitive interface for setting up module parameters, scaling input values, and defining alarm conditions. Compatibility with the CompactLogix and MicroLogix platforms ensures this module can be seamlessly incorporated into existing Allen-Bradley systems, leveraging the robust and proven architecture of these controllers.

Robust Design for Industrial Environments

The Allen-Bradley 1769-IT6 is designed to withstand harsh industrial environments. It features a robust construction that provides resistance to vibration, shock, and other mechanical stresses commonly encountered in industrial settings. Moreover, it operates within a wide range of ambient temperatures, making it suitable for different climatic conditions.
