| UPC | 10662468992845 |
| Brand | Allen-Bradley |
| Series | A and B |
| Mounting | DIN Rail; Panel Mount |
| Software | RSLogix5000 |
| Wire size | (22…14 AWG) solid (22…16 AWG) stranded |
| Input Type | Analog Output |
| Module Type | Output Module |
| Manufacturer | Industrial Automation / Allen-Bradley |
| Power supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Product Line | CompactLogix |
| Product Type | Compact I/O |
| Signal delay | Turn-on = 1/2 cycle turn-off = 1/2 cycle |
| No. of Groups | 2 groups (4 inputs each) |
| No. of Inputs | 8 |
| Shipping Weight | 2 lbs. |
| Heat Dissipation | 2.12 Watts |
| Voltage Category | 120-240 VAC |
| Wire Size (Solid) | 22 o 14 AWG |
| Communication Cable | 8 Point |
| Operating frequency | 47 to 63 Hz |
| Shipping Dimensions | 8x8x5 in. |
| Programming Software | RSLogix 5000 / Studio 5000 Logix Designer |
| Wire Size (Stranded) | 22 to 16 AWG |
| Bus Current draw, max | 145 mA at +5V dc line (1.125W) |
| Compatible Controllers | MicroLogix 1500; 1769 CompactLogix |
| Operating Voltage range | 85V ac to 265VAC |
| Part Number/Catalog No. | 1769-OA8 |
| Power Supply Distance Rating | 8 |
Does the Allen-Bradley 1769-OA8 come with a warranty?
Yes. The 1769-OA8 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1769-OA8 a genuine Allen-Bradley part?
The 1769-OA8 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1769-OA8 new or used?
We offer the 1769-OA8 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1769-OA8?
The 1769-OA8 runs at 47 to 63 Hz, draws 145 mA at +5V dc line (1.125W), and runs on 85V ac to 265VAC.
What is the Allen-Bradley 1769-OA8?
The 1769-OA8 is an Allen-Bradley CompactLogix 1769 Output Module.

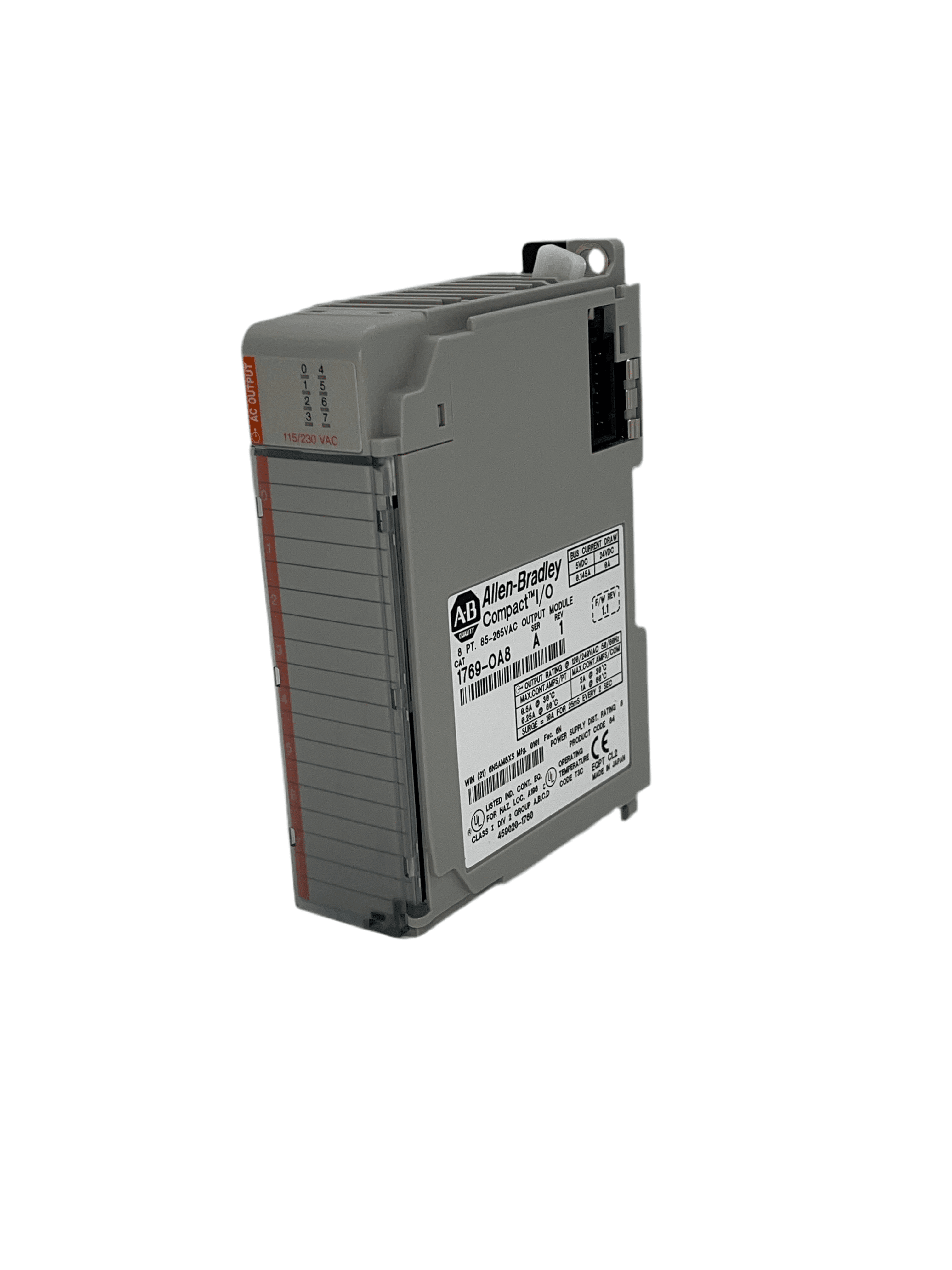

1769-OA8
The Allen-Bradley 1769-OA8 is a CompactLogix output module providing 8 analog outputs for flexible industrial control. Compatible with MicroLogix 1500 and CompactLogix controllers, it operates at 120-240 VAC and utilizes RSLogix5000 software. Designed for DIN rail or panel mounting, it's a crucial component for modular automation applications.
All products are covered by our 2-Year (24-Month) Replace Industrial Warranty. If a unit is found defective under normal use within the warranty period, we repair or replace it at no additional cost, and a unit may be returned for a full refund within 30 days if returned in the same condition it was sent.
Replace Industrial is an independent distributor and does not convey the manufacturer's warranty; all warranties are provided by Replace Industrial alone. Read the full warranty policy
