| UPC | 10611320915669 |
| Brand | Allen-Bradley |
| Series | A and B |
| UNSPSC | 32151705 |
| Outputs | 32 Point |
| Mounting | Panel Mount or DIN Rail |
| Software | RSLogix5000 |
| Enclosure | Open |
| Wire size | (22…14 AWG) solid (22…16 AWG) stranded |
| Wire type | Cu-90 °C (194 °F) |
| Dimensions | 118 x 52.5 x 87 mm (4.65 x 2.07 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
| Input Type | Digital Output |
| Module Type | DC Output Module |
| Manufacturer | Industrial Automation / Allen-Bradley |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Product Line | CompactLogix |
| Product Type | Discrete Output Module |
| No. of Groups | 2 |
| No. of Outputs | 32 |
| Product Family | Compact I/O |
| Shipping Weight | 2 pounds |
| Replacement Door | 1769-RD |
| Current per point | 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F) |
| Wire Size (Solid) | 22 to 14 AWG |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Programming software | RSLogix 500, RSLogix 5000; Studio 5000 |
| Wire Size (Stranded) | 22 to 16 AWG |
| Compatible controllers | MicroLogix 1500; CompactLogix controllers |
| Replacement door label | 1769-RL1 |
| Operating Voltage range | 20.4…26.4V DC |
| Part Number/Catalog No. | 1769-OB32 |
| Replacement Terminal Block | 1769-RTBN18 |
| Power Supply Distance rating | 8 |
Does the Allen-Bradley 1769-OB32 come with a warranty?
Yes. The 1769-OB32 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1769-OB32 a genuine Allen-Bradley part?
The 1769-OB32 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1769-OB32 new or used?
We offer the 1769-OB32 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1769-OB32?
The 1769-OB32 runs on 20.4…26.4V DC.
What is the Allen-Bradley 1769-OB32?
The 1769-OB32 is an Allen-Bradley CompactLogix 1769 DC Output Module.

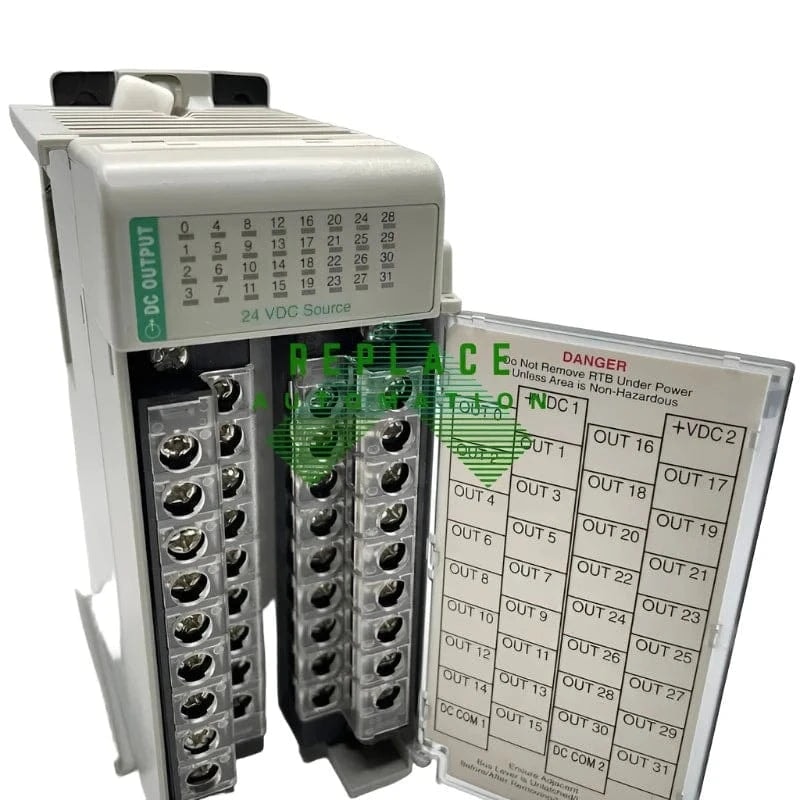

1769-OB32
The Allen-Bradley 1769-OB32 is a discrete DC output module within the Compact I/O CompactLogix line. This 32-point module is engineered for digital signal processing and is programmable using RSLogix 500 or Studio 5000. Designed for panel or DIN rail mounting, it measures 118 x 52.5 x 87 mm, supports a 20.4–26.4V DC operating range, and can accommodate 22–14 AWG wire sizes.
