Is the Allen-Bradley 1769-OF2 new or used?

We offer the 1769-OF2 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1769-OF2?

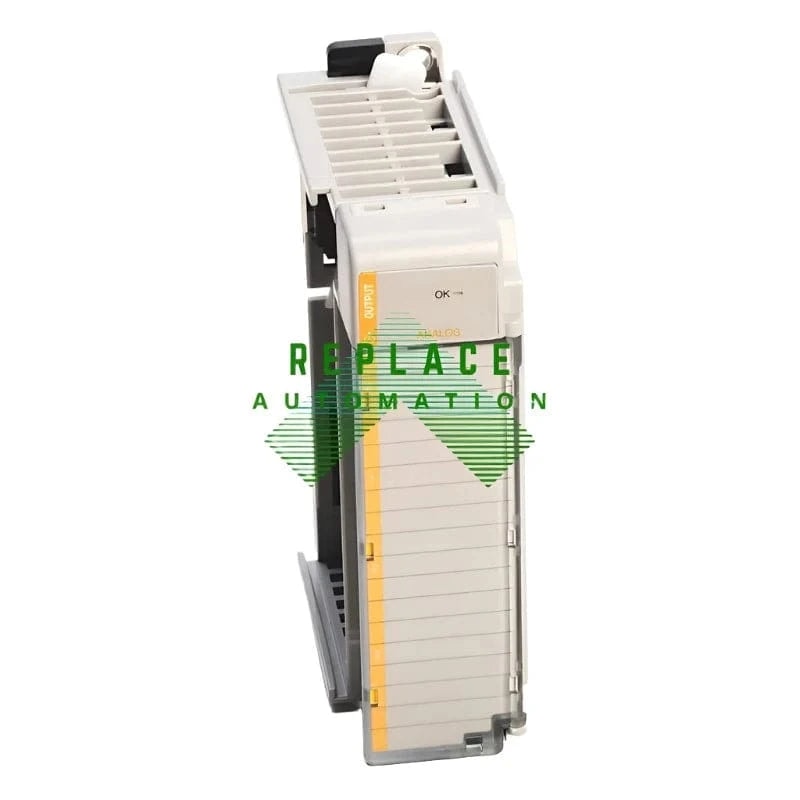

The 1769-OF2 is an Allen-Bradley CompactLogix 1769 Analog Output Module.

How fast does the 1769-OF2 ship?

In-stock orders for the 1769-OF2 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10662468992944
Brand	Allen-Bradley
Series	A and B
UNSPSC	32151705
Mounting	Panel Mount or DIN Rail
Software	RSLogix5000
Input Type	Analog
Module Type	Analog Output Module
Manufacturer	Rockwell Automation
Product Line	CompactLogix
Conversion Rate	2.5 milliseconds
Shipping Weight	2 lbs.
Replacement Door	1769-RD
Wire Size (Solid)	22 to 14 AWG
Communication Cable	2 Point
Shipping Dimensions	8 x 8 x 5 in.
Part Number/Catalog No.	1769-OF2
Replacement Terminal Block	1769-RTBN18

Allen-Bradley

1769-OF2

Rate this product

PLCs CompactLogix 1769

The Rockwell Automation Allen-Bradley 1769-OF2 is a CompactLogix Analog Output Module designed for precise control with a 2.5 millisecond conversion rate. Accommodating 22 to 14 AWG solid wires and panel or DIN rail mounting, it integrates seamlessly with RSLogix5000 software, enhancing various industrial applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1769-OF2

The Allen-Bradley 1769-OF2 module is a compact analog output module that forms part of the CompactLogix and MicroLogix platform. It provides users with the capability to output analog signals to control various industrial devices. This module is well suited for applications requiring precise control of voltage and current on two isolated channels. The flexibility of the 1769-OF2 module allows for significant customization, making it a versatile option for a range of automation tasks.

Technical Specifications

The 1769-OF2 module has two analog output channels that can be configured individually for voltage or current output. The voltage output range is typically 0-10VDC, while the current output can be set from 4-20mA. This module also features 14-bit resolution which enhances the precision of the output signals. Additionally, it includes on-board data alarming and scaling that can be used to monitor and respond to various operational parameters.

Compatibility and Integration

Integration of the Allen-Bradley 1769-OF2 module is seamless within the CompactLogix system or with a MicroLogix 1500 controller. It communicates via the backplane of the CompactLogix chassis, thus allowing for real-time data exchange and control. Additionally, the module is designed to work with the RSLogix 5000 programming software, facilitating easy setup and configuration. Users can take advantage of pre-built function blocks within the software to accelerate the development process.

Installation and Maintenance

Due to its compact size, the 1769-OF2 is conducive to applications where space is at a premium. Its installation is straightforward, and it can be easily snapped onto a DIN rail within an industrial enclosure. Regular maintenance of the module is minimal, largely due to its solid-state construction, however, users should periodically check connections and ensure the firmware is up to date for the best possible performance.

Safety and Reliability

Allen-Bradley is known for the reliability and safety of their components, and the 1769-OF2 module is no exception. It is built to meet high industry standards, which ensures consistent performance even in harsh industrial environments. The module also includes various diagnostic features that can help in early detection of potential issues, minimizing downtime and maintaining operational safety.
