What is the input voltage and phase configuration for the Allen-Bradley 22A-A6P8N113?

The 22A-A6P8N113 is a single-phase AC drive with an input voltage rating of 200-240 VAC at 50/60 Hz.

What are the output power and current ratings for this drive?

The drive has a maximum output power of 1.5 kW (2 HP) and an output current rating of 6.8 A.

Does the 22A-A6P8N113 include an integrated brake?

No, this model is designated as 'Without Brake Drive' and does not include an IGBT brake.

What type of enclosure is used for the 22A-A6P8N113?

The drive features an IP20/UL (Open) panel-mount enclosure.

What is the user interface for the 22A-A6P8N113?

The drive is equipped with a fixed keypad and a Light-Emitting Diode (LED) display.

What is the weight of the 22A-A6P8N113 drive?

The drive weighs approximately 4.69 lbs (2.13 kg).

Is the Allen-Bradley 22A-A6P8N113 new or used?

We offer the 22A-A6P8N113 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 22A-A6P8N113?

The 22A-A6P8N113 runs on 200-240 VAC, is rated at 1.5 kW, and draws 6.8 A.

What is the Allen-Bradley 22A-A6P8N113?

The 22A-A6P8N113 is part of the Allen-Bradley PowerFlex 4 line.

Manufacturer	Allen-Bradley
Product Line	PowerFlex 4
Part Number	22A-A6P8N113
Input Voltage	200-240 VAC
Input Phase	1 Phase
Input Frequency	50/60 Hz
Output Power	1.5 kW
Output Horsepower	2 HP
Output Current	6.8 A
Enclosure Type	IP20/UL (Open)
Filter	Internal CE Compliant Filter
Brake Drive	Without Brake Drive
Input Type	Keypad
Display	Light-Emitting Diode (LED)
Weight	4.69 lbs (2.13 kg)

Allen-Bradley

22A-A6P8N113

Q: Does this drive include an internal filter?

Yes, the 22A-A6P8N113 includes an internal CE-compliant filter.

Rate this product

Drives PowerFlex 4

The Allen-Bradley 22A-A6P8N113 is a 240VAC, single-phase AC drive with a 1.5 kW (2 Hp) output. Operating at 50/60Hz with a 6.8 A output current, it features an IP20 open-type enclosure for panel mounting and comes with a built-in filter, but no IGBT brake. Ideal for controlling motor speeds in industrial settings.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

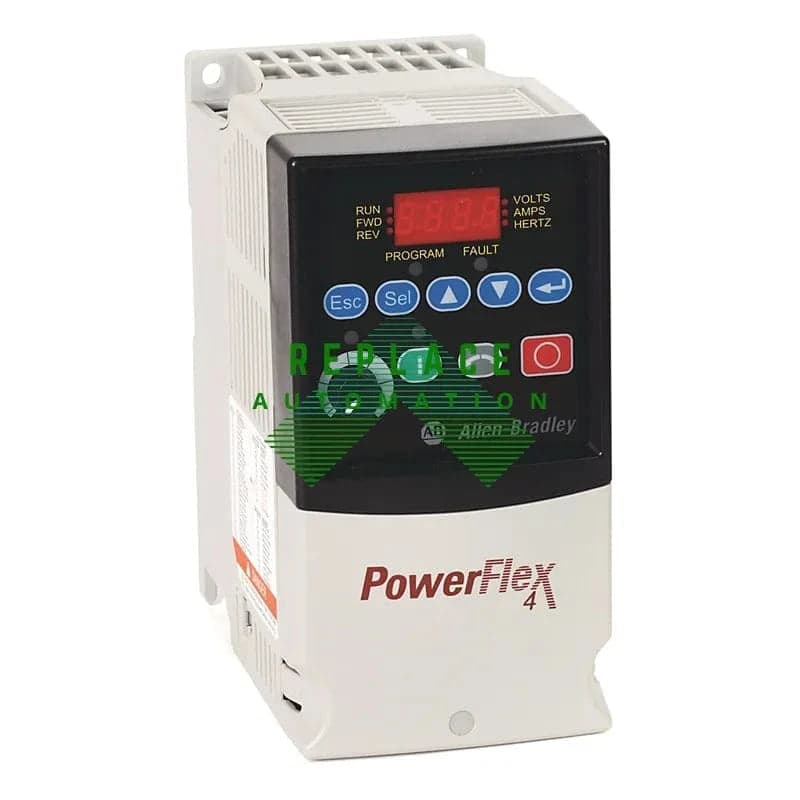

Overview of Allen-Bradley 22A-A6P8N113

The Allen-Bradley 22A-A6P8N113 is an adjustable frequency AC drive from the PowerFlex 4 product line, designed for single-phase applications. It is rated for 200-240V AC input at 50/60 Hz and delivers a maximum output of 1.5 kW (2 HP) with a 6.8 A output current.

This drive features a fixed keypad interface and an LED display, allowing for straightforward configuration and monitoring. It is manufactured by Rockwell Automation and is suitable for panel mounting in industrial environments.

Key Features

The 22A-A6P8N113 includes an internal CE-compliant filter to manage electromagnetic emissions. It is configured without an IGBT brake drive, making it suitable for applications that do not require dynamic braking. The unit features a fixed keypad for user interaction and a four-digit display with additional LED indicators for status monitoring.

The drive is designed for panel mounting and utilizes an IP20 (NEMA Type Open) enclosure. It supports a Basic Program Group to accommodate common application parameters, facilitating out-of-the-box operation for standard motor control tasks.

Performance and Capacity

Rated for 1.5 kW (2 HP) output, the drive provides a 6.8 A output current. The input voltage range is 200-240V AC (±10%) for single-phase power. The drive is designed for 50/60 Hz operation and has a power dissipation rating of 75 Watts in an IP20 open enclosure.

For branch circuit protection, the manual specifies a 25 A fuse rating and a 140M-C2E-C16 combination motor controller. The drive is compatible with 100-C16 contactors. The unit weighs approximately 4.69 lbs (2.13 kg) and has a height of 7.09 inches.

Installation and Compatibility

The 22A-A6P8N113 is designed for panel mounting with an IP20 open enclosure. When installing the drive, cable length must be managed to ensure compliance with emission classes: cables should not exceed 1000 cm in Class A surroundings and 100 cm in Class B surroundings.

The drive is part of the PowerFlex 4 family and is compatible with standard Allen-Bradley accessories and motor controllers. It is a filtered drive, meaning it includes integral EMC filtering, which may influence installation requirements regarding grounding and shielding to meet regulatory standards.

Applications and Industries

This drive is ideal for controlling motor speeds in various industrial settings where single-phase power is available. It is suitable for applications requiring precise speed control for motors up to 2 HP, such as conveyors, pumps, and fans in light industrial machinery.

The compact size and panel-mount design make it suitable for integration into control panels in manufacturing, packaging, and material handling systems. The built-in filter and standard keypad interface support reliable operation in typical industrial environments without the need for external braking components.
