Manufacturer	Allen-Bradley
Product Line	PowerFlex 4
Part Number	22A-A8P0N114
Input Voltage	200-240 VAC (±10%)
Input Phase	1-Phase
Input Frequency	50/60 Hz
Output Voltage	0-230 VAC
Output Phase	3-Phase
Rated Output Current	8.0 A
Rated Power	1.5 kW (2.0 HP)
Enclosure Rating	IP20 / NEMA UL Type Open
Installation	Panel Mount
Filter	CE Compliant Filter
Brake	Standard Brake IGBT
Keypad	Fixed Keypad with LED Display
Communication Port	RS485
Discrete Inputs	5 (3 fixed for START/STOP/REV, 2 fully programmable)
Analog Inputs	1 (0-10 V or 4-20 mA)
Discrete Outputs	1 (N.O/N.C. dry contact)
Weight	6.44 lbs (2.92 kg)
Control Mode	Volts/Hertz or Scalar with Sensorless Vector performance

What are the input voltage and phase requirements for the 22A-A8P0N114?

The 22A-A8P0N114 requires a 200-240V AC, 1-phase input. The acceptable voltage range is 180-265 VAC at 50/60 Hz.

What is the rated output power and current of the 22A-A8P0N114?

The drive has a rated output power of 1.5 kW (2.0 HP) and a rated output current of 8.0 A.

Does the 22A-A8P0N114 include a built-in filter and brake?

Yes, the 22A-A8P0N114 features an integrated CE-compliant filter and a standard brake IGBT.

What is the enclosure rating for the 22A-A8P0N114?

The drive is rated IP20 / NEMA UL Type Open when the top cover is removed. It is rated IP30 / NEMA UL Type 1 when the top cover and optional conduit box kit are installed.

What communication and control interfaces are available on the 22A-A8P0N114?

The drive includes a fixed keypad with an LED display for local control and an integrated RS-485 communication port for remote operation.

What type of control does the 22A-A8P0N114 support?

The 22A-A8P0N114 primarily supports Volts/Hertz or scalar control, with Sensorless Vector performance.

Does the Allen-Bradley 22A-A8P0N114 come with a warranty?

Yes. The 22A-A8P0N114 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 22A-A8P0N114 a genuine Allen-Bradley part?

The 22A-A8P0N114 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 22A-A8P0N114 new or used?

We offer the 22A-A8P0N114 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 22A-A8P0N114?

The 22A-A8P0N114 runs on 200-240 VAC (±10%), draws 8.0 A, and is rated at 1.5 kW (2.0 HP).

What is the Allen-Bradley 22A-A8P0N114?

The 22A-A8P0N114 is part of the Allen-Bradley PowerFlex 4 line.

Allen-Bradley

22A-A8P0N114

Rate this product

Ready to ShipDrives PowerFlex 4

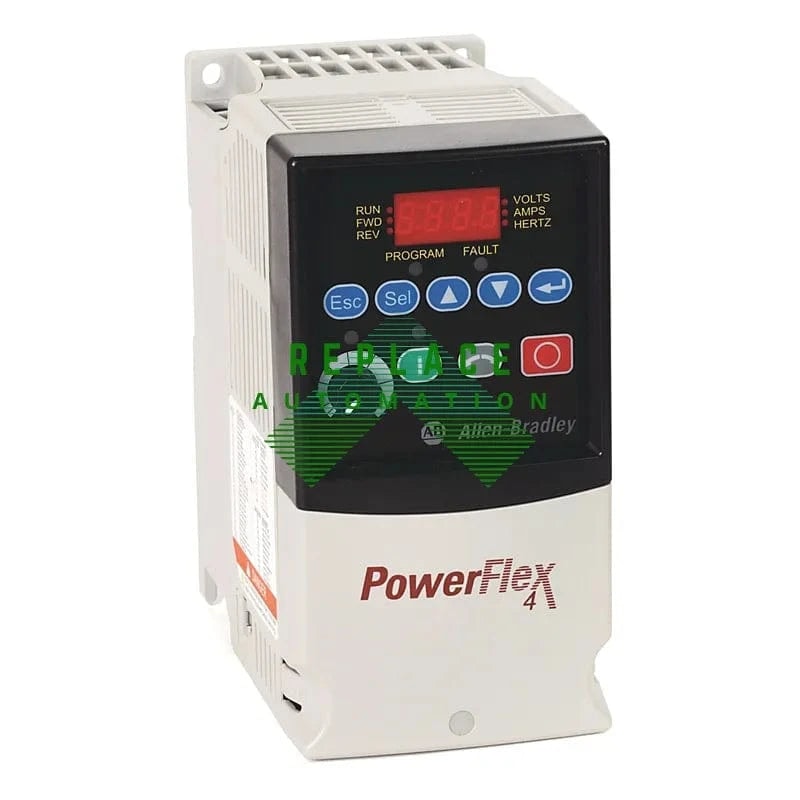

The Allen-Bradley 22A-A8P0N114 is a compact, 1.5 kW (2 HP) AC drive designed for panel mounting with a 240V AC single-phase input, an 8 Amp output, and IP20 protection. It features a built-in CE compliant filter, a brake IGBT, an integrated keypad with LED display, RS485 communication, fixed terminal block connections, and a power factor of 0.98. Perfect for industrial automation applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 22A-A8P0N114

The Allen-Bradley 22A-A8P0N114 is a compact, 1.5 kW (2 HP) adjustable AC drive from the PowerFlex 4 series, designed for panel mounting in industrial automation applications. It features a 240V AC single-phase input and an 8 Amp output, providing reliable speed regulation for motors in the 1.5 kW range.

This drive is engineered for cost-effective integration, offering a minimalistic design that reduces panel space requirements. It includes a built-in CE-compliant filter and a brake IGBT, ensuring compliance with global OEM standards while maintaining a small physical footprint.

Key Features

The 22A-A8P0N114 includes an integrated keypad with an LED display for local control and parameterization, featuring buttons for Start, Stop, Reverse, and navigation. It supports remote operation and monitoring via an integrated RS485 communication port.

Additional features include a fixed terminal block for connections, a power factor of 0.98, and a standard brake drive. The drive is equipped with an internal CE-compliant filter to manage electromagnetic emissions, and it supports both Sink and Source wiring configurations for its discrete inputs.

Performance and Capacity

Rated for 1.5 kW (2.0 HP) at 8.0 Amps, this drive accepts a 200-240V AC (±10%) single-phase input and delivers a 0-230V AC three-phase output. It is designed to operate at 50/60 Hz frequencies, providing precise speed control for connected motors.

The drive supports Volts/Hertz or scalar control with Sensorless Vector performance. It features 3 fixed discrete inputs for Start/Stop/Reverse, 4 fully programmable discrete outputs, and 2 analog inputs capable of accepting 0-10V or 4-20mA signals. A single relay output (N.O/N.C. dry contact) is also available for status indication.

Installation and Compatibility

The 22A-A8P0N114 is designed for panel mounting or DIN rail installation. It carries an IP20 / NEMA UL Type Open enclosure rating when the top cover is removed, and an IP30 / NEMA UL Type 1 rating when the top cover and optional conduit box kit are installed. The drive weighs approximately 6.44 lbs (2.92 kg).

For proper operation, the drive should be installed within an enclosure that protects it from external contaminants such as dust, dirt, and corrosive gases. The unit is discontinued by the manufacturer and is replaced by the 25A-A8P0N114, though it remains a viable option for existing installations or specific retrofit needs.

Applications and Industries

This drive is ideal for industrial automation applications requiring speed regulation for equipment such as pumps, fans, and conveyors. Its compact size and integrated features make it suitable for OEM machine builders looking to reduce panel space and investment costs.

The 22A-A8P0N114 is well-suited for environments where a 240V single-phase power supply is available, offering a reliable solution for controlling motor speed and torque in various industrial processes.
