Manufacturer	Rockwell Automation (Allen-Bradley)
Product Line	PanelView 1000
Product Type	Standard Operator Terminal
Display Size	10.1 in.
Display Color	Grayscale
Display Resolution	640 x 480
Display Area	211 x 158 mm (8.3 x 6.2 in.)
Input Type	Keypad
Keypad Assembly	16 function keys (F1…F16)
Communication Ports	EtherNet/IP, RS-232 (Printer)
Input Voltage	85-264 VAC
Input Frequency	47-63 Hz
Memory	1008 KB Nonvolatile / 310 KB RAM
Software	2711-ND3 PanelBuilder 32
Enclosure Type	NEMA Type 12/13 or 4X
Ingress Protection	IP54, IP65
Backlight Life	50,000 hr LED backlight life half-life
Operating Temperature	32-131 degrees Fahrenheit
Storage Temperature	-4 to 185 degrees Fahrenheit
Humidity	5 to 95% non-condensing
Shock	30G operating
Vibration	2G
Weight	6.31 lbs (2.86 kg)
Dimensions	11.11 inches x 16.64 inches x 4.4 inches
Installation Orientation	Horizontal only
Status	Discontinued/Obsolete

What is the display size and resolution of the 2711-K10G20?

The 2711-K10G20 features a 10.1-inch grayscale display with a resolution of 640 x 480 pixels and a display area of 211 x 158 mm (8.3 x 6.2 in.).

What communication ports are available on the 2711-K10G20?

The terminal is equipped with an EtherNet/IP communication port and an RS-232 port for printer communication.

What is the input power requirement for the 2711-K10G20?

The 2711-K10G20 operates on an AC input voltage range of 85 to 264 Volts at a frequency of 47 to 63 Hz.

How much memory does the 2711-K10G20 contain?

The terminal includes 1008 KB of nonvolatile memory and 310 KB of application runtime (RAM) memory.

What type of operator input does the 2711-K10G20 use?

The 2711-K10G20 uses a keypad input interface featuring 16 function keys (F1 through F16) and a stainless steel domed membrane.

What software is compatible with the 2711-K10G20?

The terminal is compatible with 2711-ND3 PanelBuilder 32 software.

What is the enclosure rating for the 2711-K10G20?

The device is housed in a NEMA Type 12/13 or 4X enclosure, which is rated for indoor use only and meets IP54 and IP65 standards.

Is the 2711-K10G20 currently in production?

No, the 2711-K10G20 is discontinued and obsolete.

Does the Allen-Bradley 2711-K10G20 come with a warranty?

Yes. The 2711-K10G20 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 2711-K10G20 a genuine Allen-Bradley part?

The 2711-K10G20 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 2711-K10G20 new or used?

We offer the 2711-K10G20 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 2711-K10G20?

The 2711-K10G20 runs on 85-264 VAC and operates across 32-131 degrees Fahrenheit.

What is the Allen-Bradley 2711-K10G20?

The 2711-K10G20 is an Allen-Bradley Panelview 1000 Standard Operator Terminal.

Allen-Bradley

2711-K10G20

Rate this product

HMIs Panelview 1000

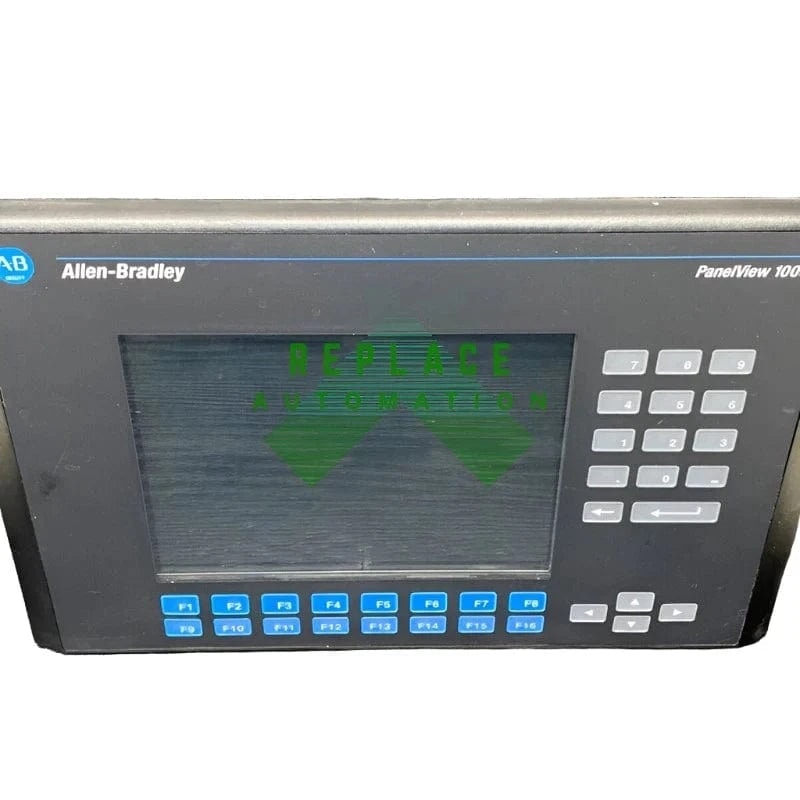

The Allen-Bradley 2711-K10G20, from Rockwell Automation's Panelview 1000 line, is a 10.1" grayscale operator interface with a keypad input. It features Ethernet and RS-232 printer communication ports, operates with 85-264VAC, and is equipped with 256KB memory. Compatible with 2711-ND3 PanelBuilder 32 software, it meets NEMA Type 12/13 or 4X standards and is now discontinued.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 2711-K10G20

The Allen-Bradley 2711-K10G20 is a PanelView 1000 Standard Operator Terminal from Rockwell Automation, designed for industrial automation environments requiring reliable human-machine interaction. This discontinued unit features a 10.1-inch grayscale display with a resolution of 640 x 480 pixels, providing clear visual feedback of machine functions and application parameters. The terminal is equipped with a keypad input interface, allowing operators to navigate and control processes without the need for a touch screen.

As part of the PanelView 1000 line, this operator interface terminal is built to withstand industrial conditions, featuring a NEMA Type 12/13 or 4X enclosure rating. It is powered by an external AC supply and includes a battery-backed internal clock for real-time data stamping, ensuring accurate logging of critical operational events.

Key Features

The 2711-K10G20 includes a 16-key function keypad (F1 through F16) with a stainless steel domed membrane, rated for approximately 1 million presses. The display utilizes an LED backlight with a 50,000-hour half-life at 77 degrees Fahrenheit, ensuring long-term visibility in industrial settings. The unit also features status indicators for communication (green) and faults (red) to assist in troubleshooting.

Communication capabilities include an embedded EtherNet/IP interface for network connectivity and an RS-232 port dedicated to printer communication. The terminal supports the use of an ATA memory card for expanded data storage and application management, enhancing its utility in complex automation tasks.

Performance and Capacity

Powered by an input voltage range of 85 to 264 VAC at 47 to 63 Hz, the 2711-K10G20 offers flexible power integration. It is equipped with 310 KB of application runtime memory (RAM) and 1008 KB of nonvolatile memory for storing application data. The device is designed for horizontal installation only and operates within a temperature range of 32 to 131 degrees Fahrenheit at 5 to 95% non-condensing humidity.

The terminal is built to endure 30G operating shock and 2G vibration, ensuring durability in dynamic industrial environments. Storage temperature ranges from -4 to 185 degrees Fahrenheit. The unit weighs approximately 6.31 lbs (2.86 kg) and measures 11.11 inches x 16.64 inches x 4.4 inches, fitting standard panel cutouts for easy integration.

Installation and Compatibility

The 2711-K10G20 is compatible with 2711-ND3 PanelBuilder 32 software for application development and configuration. It supports EtherNet/IP communication for integration with Rockwell Automation control systems and other networked devices. The RS-232 port is specifically designated for printer output, allowing operators to generate hard copies of data or logs directly from the terminal.

Installation requires a horizontal orientation and an AC power supply within the specified 85-264 VAC range. The NEMA Type 12/13 or 4X enclosure provides protection against dust and water, suitable for indoor use. Users should note that this model is discontinued, and replacement units may require verification of revision compatibility, as multiple revisions (Series A through F) exist for this part number.

Applications and Industries

The Allen-Bradley 2711-K10G20 is suitable for a wide variety of industrial applications where real-time interaction between operators and machinery is essential. It is commonly used in manufacturing, process control, and discrete automation systems to monitor machine status, input commands, and log operational data. The grayscale display and keypad input make it a cost-effective solution for applications that do not require color graphics or touch-based interaction.

Industries such as food and beverage, packaging, and general manufacturing have utilized this terminal for its robust design and reliable communication capabilities. Its ability to withstand shock and vibration, along with its durable keypad, makes it well-suited for environments with physical demands on equipment.
