| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 16-Point Diagnostic |
| Voltage | 24 Volts DC Source |
| Enclosure | None |
| Module Type | Diagnostic DC Output Module |
| Manufacturer | Rockwell Automation |
| Isolation Voltage | 50 Volts Continuous |
| Operating Voltage Range | 19.2-30 Volts DC |
| Part Number/Catalog No. | 1756-OB16DK |
| Power Dissipation (Max) | 3.3 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 250 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Backplane Current at 24 Volts | 140 milliamps |
| Maximum Output Current Rating-Point | 2 Amps at |
| Maximum Output Current Rating-Module | 8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius |
Does the Allen-Bradley 1756-OB16DK come with a warranty?
Yes. The 1756-OB16DK is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OB16DK a genuine Allen-Bradley part?
The 1756-OB16DK is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OB16DK new or used?
We offer the 1756-OB16DK in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OB16DK?
The 1756-OB16DK runs on 19.2-30 Volts DC and draws 2 Amps at.
What is the Allen-Bradley 1756-OB16DK?
The 1756-OB16DK is an Allen-Bradley ControlLogix 1756 Diagnostic DC Output Module.

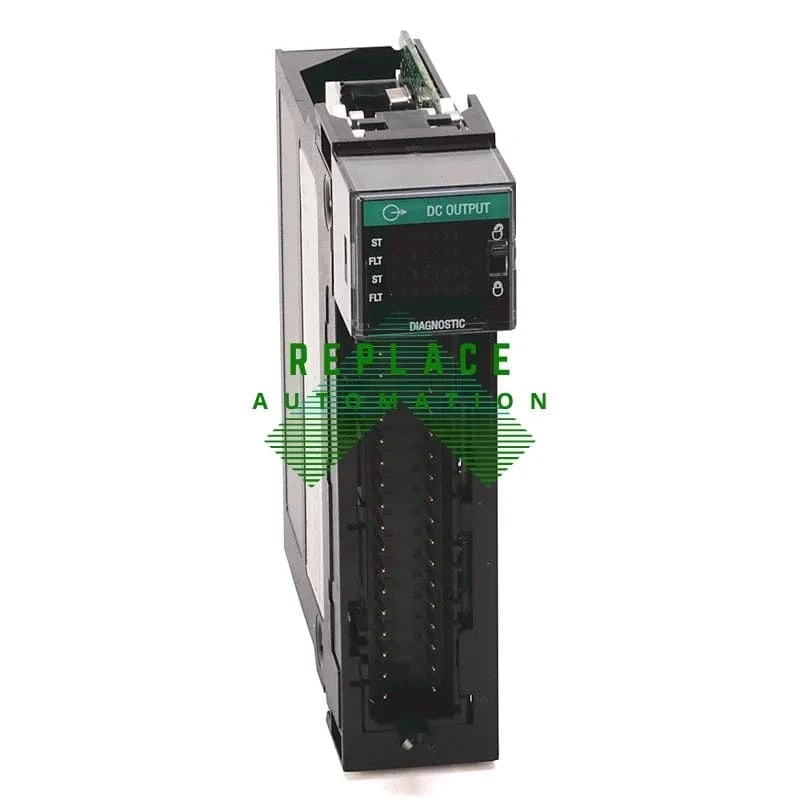

1756-OB16DK
The Allen-Bradley 1756-OB16DK is a ControlLogix Diagnostic DC Output Module by Rockwell Automation, featuring 16 diagnostic outputs at 24V DC. Suited for high-density applications, it supports 2A per point and 8A per module with a 3.3W max power dissipation and versatile 19.2-30V DC operating range.
