| UPC | 10662468702994 |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 32-Point |
| Voltage | 12-24 Volts DC Source |
| Enclosure | None |
| Module Type | DC Output Module |
| Manufacturer | Rockwell Automation |
| Current per point | 0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F) |
| Isolation Voltage | 50 Volts Continuous |
| Current per module | 16 A @ 50 °C (122 °F) linear derating10 A @ 60 °C (140 °F) |
| Operating Voltage Range | 10-31.2 Volts DC |
| Part Number/Catalog No. | 1756-OB32 |
| Power Dissipation (Max) | 4.8 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 300 milliamps |
| Output Delay Time, OFF to ON | 60 µs nom/1 ms max |
| Output Delay Time, ON to OFF | 200 µs nom/1 ms max |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Maximum Output Current Rating-Point | 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius |
| Maximum Output Current Rating-Module | 16 Amps at 50 Celsius, 10 Amps at 60 Celsius |
Does the Allen-Bradley 1756-OB32 come with a warranty?
Yes. The 1756-OB32 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OB32 a genuine Allen-Bradley part?
The 1756-OB32 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OB32 new or used?
We offer the 1756-OB32 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OB32?
The 1756-OB32 runs on 10-31.2 Volts DC and draws 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius.
What is the Allen-Bradley 1756-OB32?
The 1756-OB32 is an Allen-Bradley ControlLogix 1756 DC Output Module.

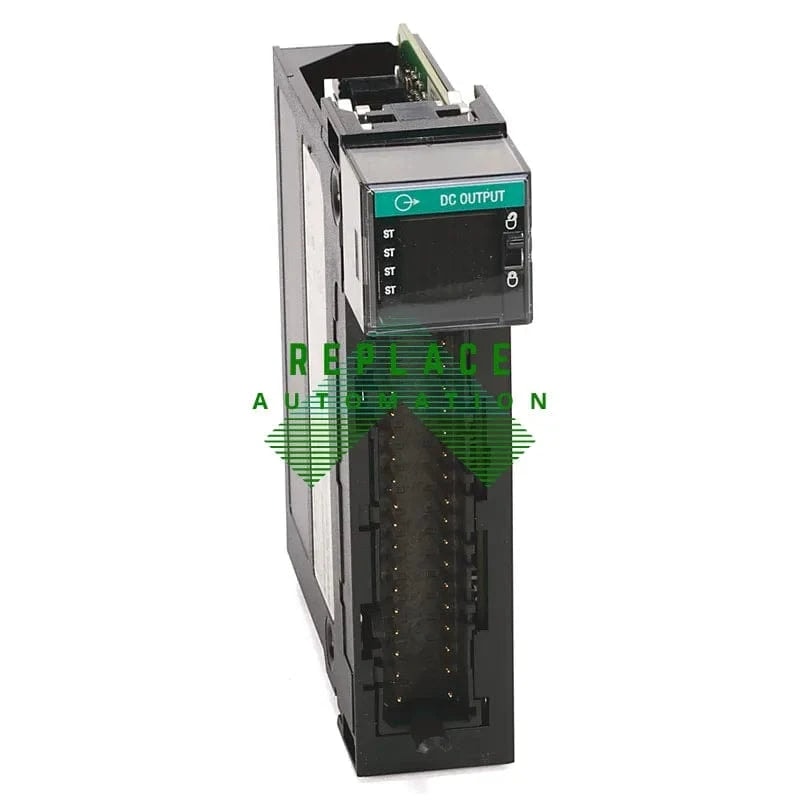

1756-OB32
The Allen-Bradley 1756-OB32 is a Rockwell Automation ControlLogix DC Output Module offering 32 outputs, operating at 10-31.2V DC with fast response times (60 µs/200 µs), and a current capacity of up to 16A per module. It features removable terminals and ensures safety with a 50V continuous isolation voltage.
