| UPC | 10611320861676 |
| Brand | Allen-Bradley |
| Inputs | 4 |
| Function | Resistance Module |
| Resolution | Input filter and configuration dependent. |
| Data Formats | raw/proportional, engineering units x 1, engineering units x 10, scaled-for-PID and percent full scale |
| Manufacturer | Rockwell Automation |
| Product Type | RTD / Resistance Input Module |
| Input Filters | 10 Hz, 50 Hz, 60 Hz, 250 Hz, 500 Hz and 1 kHz |
| No. of Inputs | Four (4) |
| Converter Type | Sigma-Delta |
| Product Family | MicroLogix |
| Heat Dissipation | 1.5 Watts |
| Conversion Method | Delta-Sigma |
| Compatible Controllers | MicroLogix 1100 / 1200 / 1400 |
| Compatible RTD Sensors | RTD Type100? Platinum 385, 200? Platinum 385, 500? Platinum 385 ,1000? Platinum 385, 100? Platinum 3916, 200? Platinum 3916, 500? Platinum 3916, 1000? Platinum 3916, 10? Copper 426, 120? Nickel 672, 120? Nickel 618 and 604? Nickel-Iron 518 RTD, 2-Wire, 3-Wire, 4-Wire RTD |
| Configuration software | RSLogix 500 |
| Part Number/Catalog No. | 1762-IR4 |
| Compatible Resistance signals | 0 to 150?, 0 to 500?, 0 to 1000? and 0 to 3000? |
Does the Allen-Bradley 1762-IR4 come with a warranty?
Yes. The 1762-IR4 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1762-IR4 a genuine Allen-Bradley part?
The 1762-IR4 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1762-IR4 new or used?
We offer the 1762-IR4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What is the Allen-Bradley 1762-IR4?
The 1762-IR4 is an Allen-Bradley MicroLogix 1200 RTD / Resistance Input Module.
How fast does the 1762-IR4 ship?
In-stock orders for the 1762-IR4 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

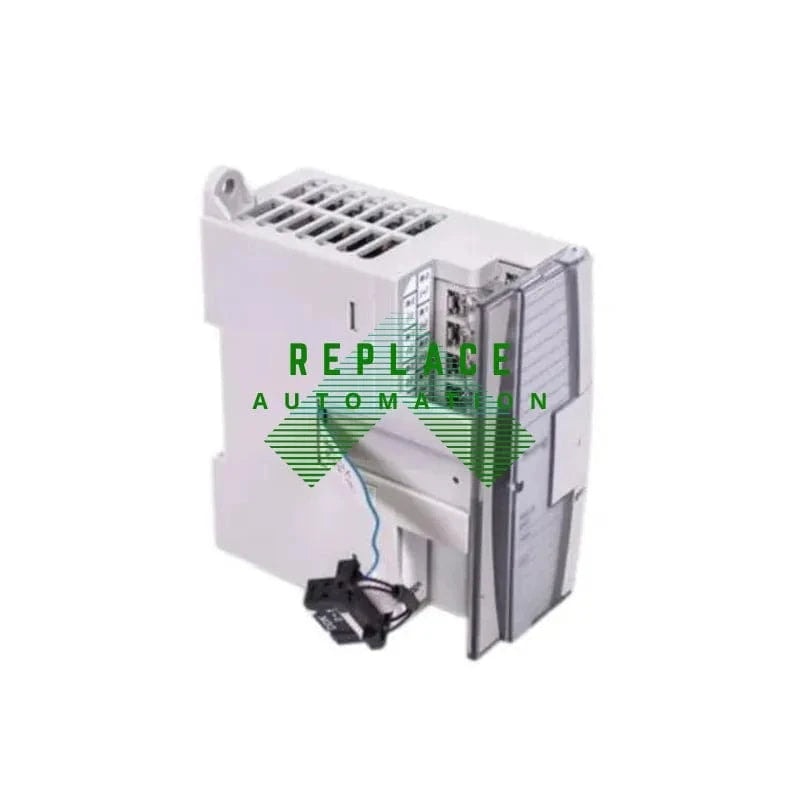

1762-IR4
The Allen-Bradley 1762-IR4 is a four-input resistance module part of the MicroLogix 1200 series. Manufactured by Rockwell Automation, it supports various RTD and resistance signals, ensuring compatibility with MicroLogix 1100, 1200, and 1400 controllers. It features a sigma-delta converter and a range of input filters for precise temperature measurements.
