| UPC | 10611320023630 |
| Brand | Allen-Bradley |
| Memory | 7.6 Kb |
| Series | MicroLogix 1500 |
| Function | Processor Unit |
| Software | RSLogix 500 |
| User Memory | Series B; 12K (8K Program; 4K Data)Series C: 14K (10K Program; 4K Data) |
| Manufacturer | Rockwell Automation |
| Power supply | MicroLogix Bus |
| Product Type | MicroLogix Controller |
| Expansion I/O | 512 |
| Output Source | Relay Port and DC FET |
| Enclosure Type | IP20 |
| Product Family | MicroLogix |
| RS232 Topology | Point to point |
| Bus Current Draw | 380 MA |
| Heat Dissipation | 1.9 Watts |
| Communication Port | 1; RS232 |
| Communication Ports | DH-485, Modbus, DF1, and ACSII |
| Supported Base Units | 1764-AWA; 1764-BWA; 1764-BXB |
| Communication Protocol | Channel 0: DF1, DH485, Modbus, ASCII |
| Part Number/Catalog No. | 1764-LSP |
| Compatible Memory Module | 1764-MM1, 1764-MM2, 1764-MM3 |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Compatible Real Time Clock | 1764-RTC |
| Digital Trim Potentiometers | 2 built-in |
| Support for removal under power | 28 |
Does the Allen-Bradley 1764-LSP come with a warranty?
Yes. The 1764-LSP is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1764-LSP a genuine Allen-Bradley part?
The 1764-LSP is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1764-LSP new or used?
We offer the 1764-LSP in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1764-LSP?
The 1764-LSP draws 380 MA and communicates over Channel 0: DF1, DH485, Modbus, ASCII.
What is the Allen-Bradley 1764-LSP?
The 1764-LSP is an Allen-Bradley MicroLogix 1500 MicroLogix Controller.

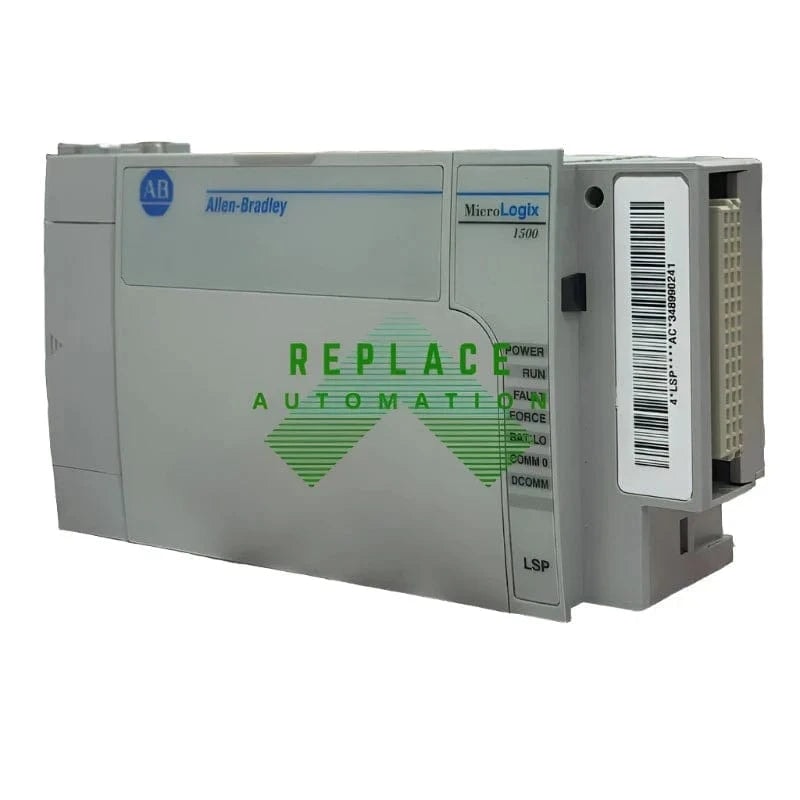

1764-LSP
The Allen-Bradley 1764-LSP is a MicroLogix 1500 Processor Unit by Rockwell Automation, designed for industrial control systems. This PLC offers 7.6 Kb memory, versatile communication options including DH-485 and Modbus, and supports a range of base units. Discontinued yet efficient, it works with RSLogix 500 software and offers expansion up to 512 I/O.
