| UPC | 10612598518095 |
| Brand | Allen-Bradley |
| Inputs | (20) Digital 120V AC, (2) Analog |
| Memory | 20 KB |
| Series | MicroLogix 1400 |
| UNSPSC | 32151705 |
| Display | LCD screen, built in |
| Feature | Built-in RTC |
| Outputs | (12) Relay |
| Mounting | Panel Mounting / DIN Rail |
| Dimensions | 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in) |
| Module Type | Controller |
| Part Number | 1766- L32AWA |
| Manufacturer | Rockwell Automation |
| Power supply | 100/240V AC |
| Product Type | MicroLogix 1400 Controller |
| Channel Count | (20) IP, (12) OP |
| Communication | Ethernet, RS-232, RS-485 |
| Number of I/O | 32 points |
| Product Family | MicroLogix |
| Operating Power | 110 to 240 VAC |
| Shipping weight | 2 lbs |
| Power Consumption | 100 VA |
| Communication port | 1 RS232 / RS485; 1 Ethernet; 1 RS232 |
| Operating Frequency | 47-63 Hz |
| Supported Protocols | Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP |
| Programming Software | RSLogix 500; RSLogix 500 Micro |
| Part Number/Catalog No. | 1766-L32AWA |
| Analog Input Signal Range | None |
| Number of Discrete Inputs | Twenty (20) 120VAC |
| Number of Discrete Outputs | Twelve (12) Relay |
| Power supply inrush current | 120V AC: 25 A for 8 ms 240V AC: 40A for 4 ms |
Does the Allen-Bradley 1766-L32AWA come with a warranty?
Yes. The 1766-L32AWA is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1766-L32AWA a genuine Allen-Bradley part?
The 1766-L32AWA is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1766-L32AWA new or used?
We offer the 1766-L32AWA in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1766-L32AWA?
The 1766-L32AWA is rated at 100 VA and runs at 47-63 Hz.
What is the Allen-Bradley 1766-L32AWA?
The 1766-L32AWA is an Allen-Bradley MicroLogix 1400 Controller.
1766-L32AWA

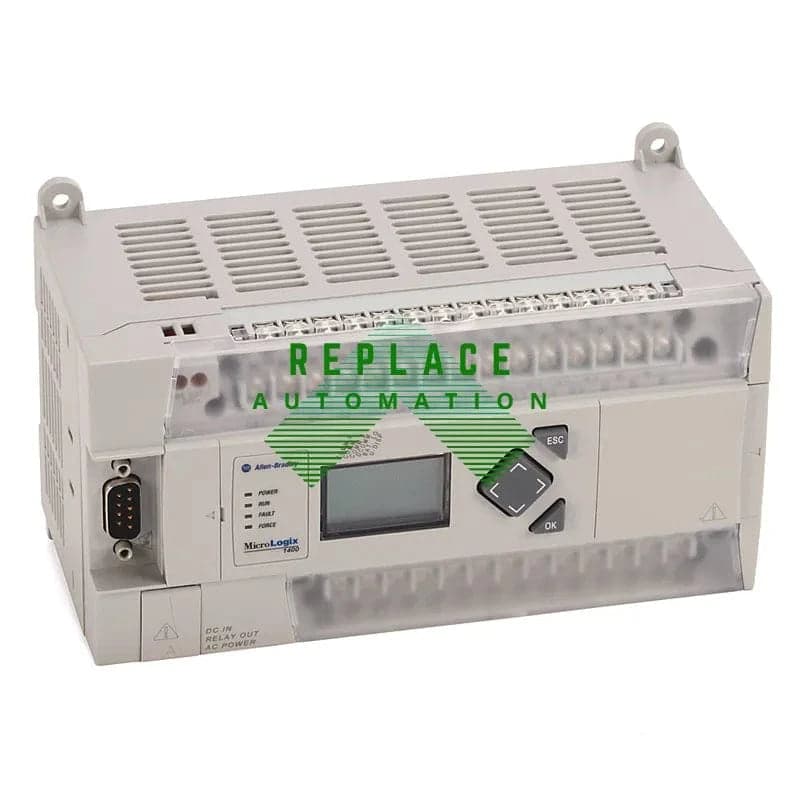

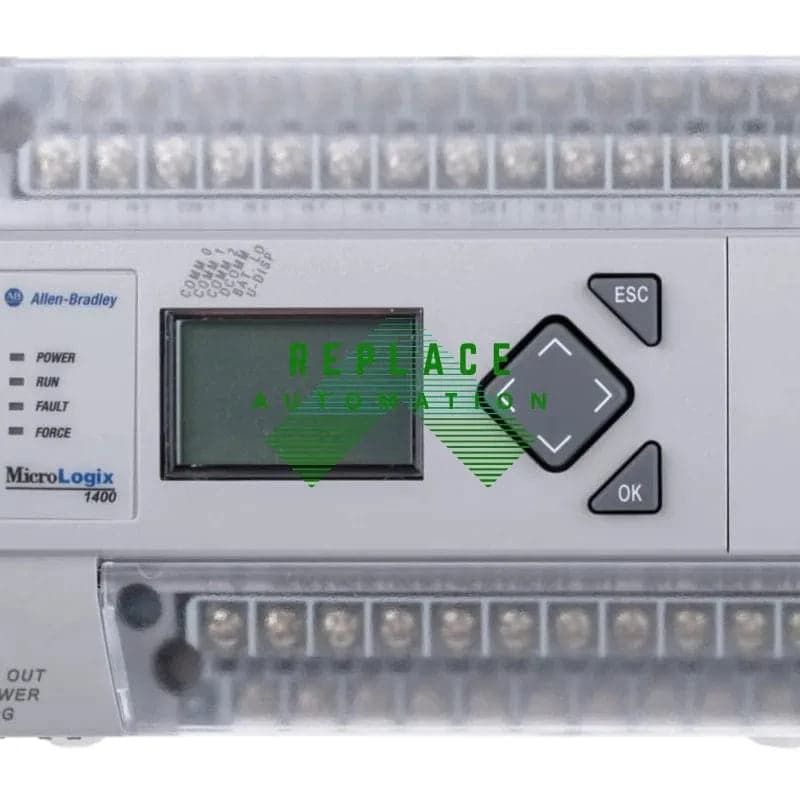

The Rockwell Automation Allen-Bradley 1766-L32AWA is a MicroLogix 1400 series controller with 32 I/O points, featuring 20 digital and 2 analog inputs, and 12 relay outputs. Equipped with Ethernet and serial communication, it operates at 110 to 240 VAC and comes with 20 KB memory, an LCD screen, and supports RSLogix programming software.
