| UPC | 10612598518118 |
| Brand | Allen-Bradley |
| Inputs | (12) Digital Fast 24V DC, (8) Digital Normal 24V DC, (2) Analog |
| Memory | 20 KB |
| Series | MicroLogix 1400 |
| Feature | Built-in RTC |
| Outputs | (6) Relay, (3) Fast 24V DC, (3) Normal 24V DC |
| Mounting | Panel Mounting / DIN Rail |
| Dimensions | 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in) |
| Module Type | Controller |
| Part Number | 1766-L32BWA |
| Manufacturer | Rockwell Automation |
| Product Type | MicroLogix 1400 Controller |
| Channel Count | (20) IP, (12) OP |
| Communication | Ethernet/IP |
| Number of I/O | 32 points |
| Product Family | MicroLogix |
| Operating Power | 24V DC |
| Shipping weight | 2 lbs |
| Power Consumption | 50W; 7.5W (with no 1762 expansion I/O) |
| Communication port | 1 RS232 / RS485; 1 Ethernet; 1 RS232 |
| Operating Frequency | 47-63 Hz |
| Supported Protocols | Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP |
| Programming Software | RSLogix 500; RSLogix 500 Micro |
| Part Number/Catalog No. | 1766-L32BXB |
| Analog Input Signal Range | None |
| Number of Discrete Inputs | Twelve (12) Fast 24VDC; Eight (8) Normal 24VDC |
| Number of Discrete Outputs | Six (6) Relay; Three (3) Fast DC; Three (3) Normal DC |
| Power supply inrush current | 24V DC: 15 A for 20 ms |
Does the Allen-Bradley 1766-L32BXB come with a warranty?
Yes. The 1766-L32BXB is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1766-L32BXB a genuine Allen-Bradley part?
The 1766-L32BXB is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1766-L32BXB new or used?
We offer the 1766-L32BXB in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1766-L32BXB?
The 1766-L32BXB is rated at 50W; 7.5W (with no 1762 expansion I/O) and runs at 47-63 Hz.
What is the Allen-Bradley 1766-L32BXB?
The 1766-L32BXB is an Allen-Bradley MicroLogix 1400 Controller.

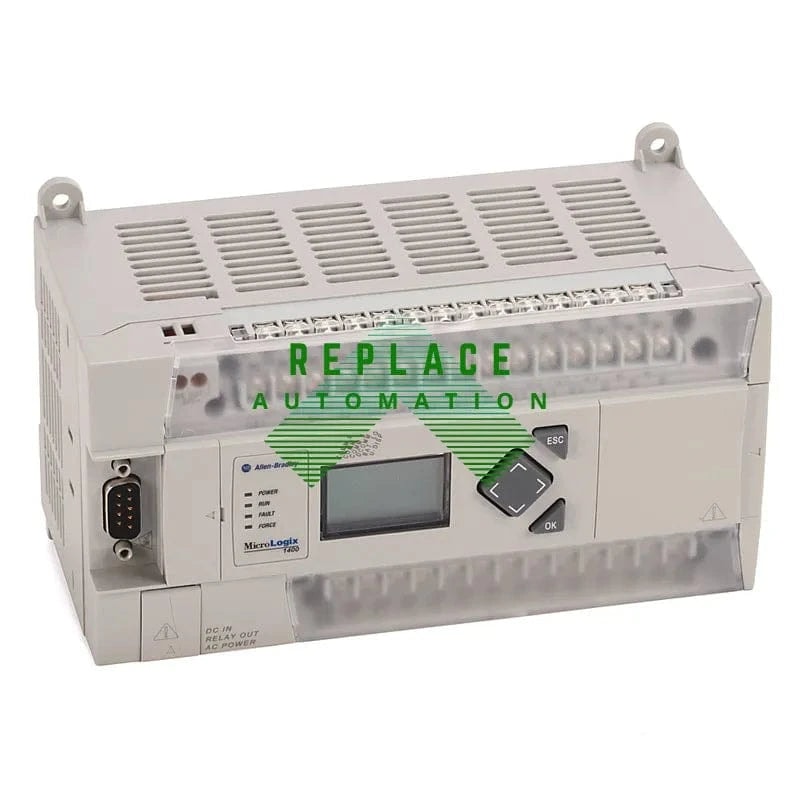

1766-L32BXB
The Allen-Bradley 1766-L32BXB is a MicroLogix 1400 Controller by Rockwell Automation, featuring 32 I/O points—20 inputs and 12 outputs, including fast and normal digital, and relay outputs. It supports Ethernet/IP communication, has built-in real-time clock (RTC), and is programmed with RSLogix 500 software. Dimensions are 90 x 180 x 87 mm.
