Is the Allen-Bradley 1766-L32BWA new or used?

We offer the 1766-L32BWA in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1766-L32BWA?

The 1766-L32BWA operates across -20... 60 °C (-4...140 °F).

What is the Allen-Bradley 1766-L32BWA?

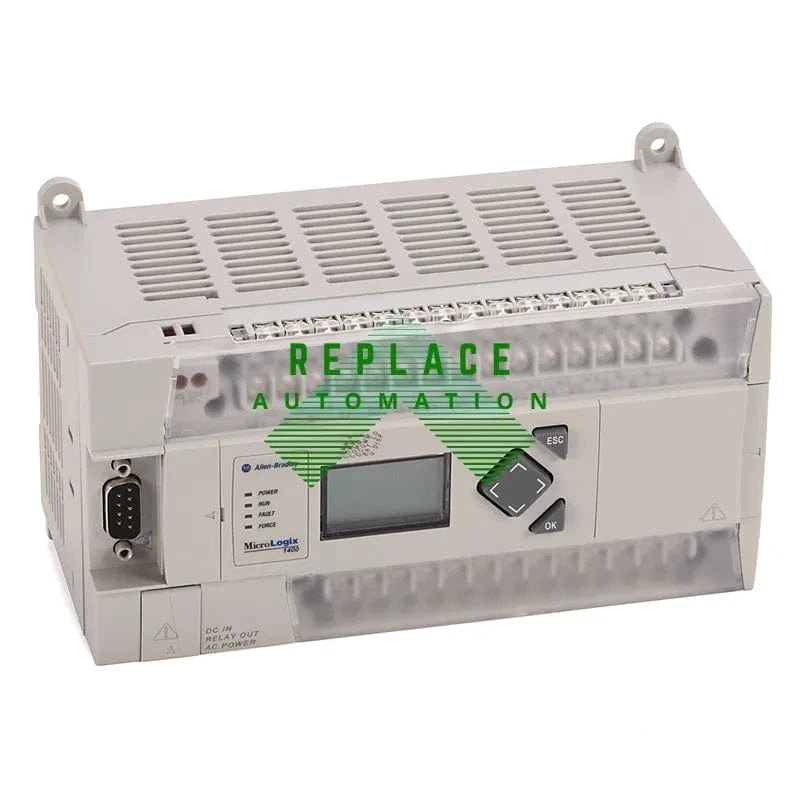

The 1766-L32BWA is an Allen-Bradley MicroLogix 1400 Controller.

Type	Controller
Brand	Allen-Bradley
Depth	87
Width	180
Height	90
Memory	20 KB
Display	Yes
Mounting	DIN Rail, Panel Mount
Standard	c-UL-us CL1DIV2, CE, C-Tick, KCC
Enclosure	IP20
Interface	Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports.
Sub Brand	MicroLogix 1400
Input Signal	120 V AC
Power Supply	120/240V AC
Communication	DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
Output Signal	Relay
Embedded Analog	(4) Voltage Inputs / (2) Voltage Outputs
Special Features	Built-in RTC, Online Editing, 6 HSC, Up to 7 Expansion I/O
Number Of Channels	20 I/P, 12 O/P
Operating Temperature	-20... 60 °C (-4...140 °F)

Allen-Bradley

1766-L32BWA

Rate this product

Ready to ShipPLCs MicroLogix 1400

The Allen-Bradley 1766-L32BWA MicroLogix 1400 controller offers versatile control solutions with 20 digital inputs, 12 relay outputs, and 6 high-speed counters. Featuring a mix of analog I/O, Ethernet communication, serial ports, expansion capabilities, and a built-in RTC, it's ideal for a broad range of applications, accommodating DIN rail or panel mounting within a compact footprint.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1766-L32BWA

The Allen-Bradley 1766-L32BWA is a controller from the MicroLogix 1400 series. It belongs to a family of small programmable logic controllers (PLCs) designed for industrial applications. Its various features and compact design make it suitable for small to mid-size control applications where efficient space usage and cost-effectiveness are important.

Technical Specifications

The 1766-L32BWA features 20 digital inputs, 12 relay outputs, and 2 analog inputs. It supports an input voltage of 120/240V AC with a built-in AC power supply. Soundly designed, it has a user memory of 10K words and an execution speed of 1ms for a typical instruction set. Its integrated communication ports support RS232, RS485, Modbus, and Ethernet/IP networking capabilities, providing versatility in terms of connectivity.

Programming and Configuration

Programmable using RSLogix 500 software, the Allen-Bradley 1766-L32BWA can be configured using ladder logic, function block, and structured text programming languages. This flexibility ensures that developers can apply the solution that best fits their control logic needs. Additionally, it offers an easy-to-use interface with a high level of customization to accommodate various automation tasks.

Expansion Modules and Compatibility

Although the 1766-L32BWA MicroLogix 1400 controller comes with a set number of I/O options, it also supports expansion I/O modules, thereby enhancing its potential application scope. This capability ensures that users can scale their systems in response to evolving requirements without the need for a complete overhaul of their control infrastructure. Furthermore, the unit is compatible with various field devices and other Allen-Brädley equipment, allowing for seamless integration into existing systems.

Industry Applications

Commonly used in multiple industries including manufacturing, automotive, food and beverage, and materials handling, the 1766-L32BWA offers reliable performance in harsh environments. Its robustness and flexible programming options make it a popular choice for applications that require precise control and automation, such as assembly lines, conveyor systems, and process control operations.
