Is the Allen-Bradley 22A-D6P0N104 new or used?

We offer the 22A-D6P0N104 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 22A-D6P0N104?

The 22A-D6P0N104 runs on 480VAC, 3PH and draws 6 Amps.

What is the Allen-Bradley 22A-D6P0N104?

The 22A-D6P0N104 is part of the Allen-Bradley PowerFlex 4 line.

Brand	Allen-Bradley
Input Voltage	480VAC, 3PH
Output Current	6 Amps
Enclosure Style	IP20 (Open)

Allen-Bradley

22A-D6P0N104

Rate this product

Ready to ShipDrives PowerFlex 4

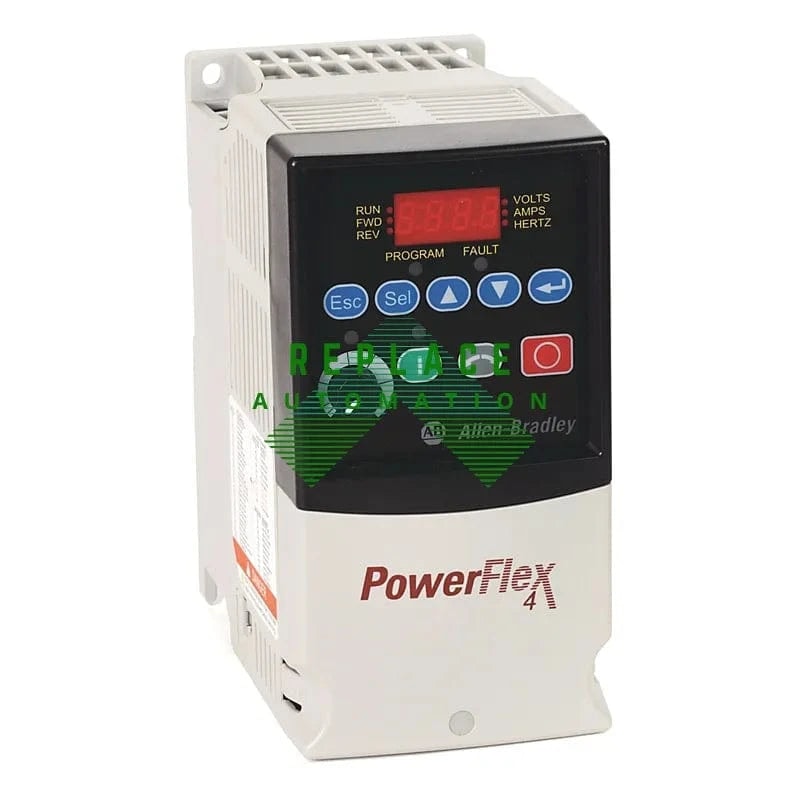

The Allen-Bradley 22A-D6P0N104 is a 2.2 kW (3 HP), 480V AC, three-phase panel-mounted AC drive featuring a 6A output, IP20 open enclosure, integral keypad, LED display, brake IGBT, RS485 communication, and fixed terminal blocks, designed for robust industrial applications with a power factor of 0.98.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 22A-D6P0N104

The Allen-Bradley 22A-D6P0N104 is a PowerFlex 4 variable frequency drive designed to control the speed and operation of industrial AC motors. This drive is commonly used in applications such as fans, pumps, conveyors, and other motor-driven equipment where adjustable speed control, compact size, and dependable performance are required.

Specifications and Features

The 22A-D6P0N104 is rated for 3 horsepower, or 2.2 kW, with a 6.0 amp output current. It operates with a 3-phase 380 to 480V AC input and provides variable output for controlling motor speed. This PowerFlex 4 drive includes an LED keypad for local operation and programming, along with an RS485 communication port for drive communication. It is built in a Frame B size and uses an IP20 / UL Open enclosure style for panel-mounted installations.

Installation and Compatibility

This drive is designed for panel mounting in industrial control cabinets and is part of the Allen-Bradley PowerFlex 4 product line. It features discrete inputs for start, stop, and reverse functions, along with programmable inputs and outputs for application flexibility. The drive also includes analog input capability for 0 to 10V DC or 4 to 20 mA control signals, allowing it to be integrated into a variety of motor control systems.

Safety and Reliability

The 22A-D6P0N104 is designed with protective features that support reliable motor operation in industrial environments. It includes motor overload protection, overcurrent protection, and overvoltage and undervoltage protection. The drive also includes an internal dynamic braking system and is designed to provide stable speed regulation and strong torque performance across its operating range.

Programming and Operation

Programming and operation of the 22A-D6P0N104 can be completed through its built-in keypad and LED display. Users can configure motor control settings, speed references, input functions, and output behavior based on the needs of the application. With Volts per Hertz control and sensorless vector performance, this drive provides practical motor speed control for a wide range of industrial automation and equipment applications.
