| EMC filter | Level 3 EMC filter |
| Option card | Communication card APOGEE FLN Communication card BACnet Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Communication card LonWorks Communication card METASYS N2 Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Multi-pump card Communication card Profibus DP Communication card Profibus DP V1 |
| Line current | 137 A 480 V 3 phase 75 kW / 100 hp 167 A 380 V 3 phase 75 kW / 100 hp |
| Apparent power | 109.9 kVA 380 V 3 phase 75 kW / 100 hp |
| Assembly style | With heat sink |
| Component name | ATV61 |
| Motor power kW | 75 kW, 3 phase 380...480 V |
| Range of Product | Altivar 61 |
| Switching frequency | 1...16 kHz adjustable 12...16 kHz with derating factor |
| Type of polarization | No impedance Modbus |
| power supply voltage | 380...480 V - 15...10 % |
| supply number of phases | 3 phase |
| Maximum transient current | 192 A 60 s, 3 phase |
| Product or Component Type | Variable speed drive |
| Maximum Horse Power Rating | 100 hp, 3 phase 380...480 V |
| asynchronous motor control | Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio, 2 points |
| Nominal switching frequency | 12 kHz |
| communication port protocol | CANopen Modbus |
| Product Specific Application | Pumping and ventilation machine |
| maximum prospective line Isc | 22 kA 3 phase |
| Synchronous motor control profile | Vector control without sensor, standard |
Does the Schneider Electric ATV61HD75N4 come with a warranty?
Yes. The ATV61HD75N4 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this ATV61HD75N4 a genuine Schneider Electric part?
The ATV61HD75N4 is sourced and verified independently. Replace Industrial is not an authorized distributor, affiliate, or representative of Schneider Electric, and all warranties are provided directly by Replace Industrial.
Is the Schneider Electric ATV61HD75N4 new or used?
We offer the ATV61HD75N4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the ATV61HD75N4?
The ATV61HD75N4 is rated at 75 kW, 3 phase 380...480 V, runs on 380...480 V - 15...10 %, and communicates over CANopen Modbus.
What is the Schneider Electric ATV61HD75N4?
The ATV61HD75N4 is a Schneider Electric ATV 61 Variable speed drive.

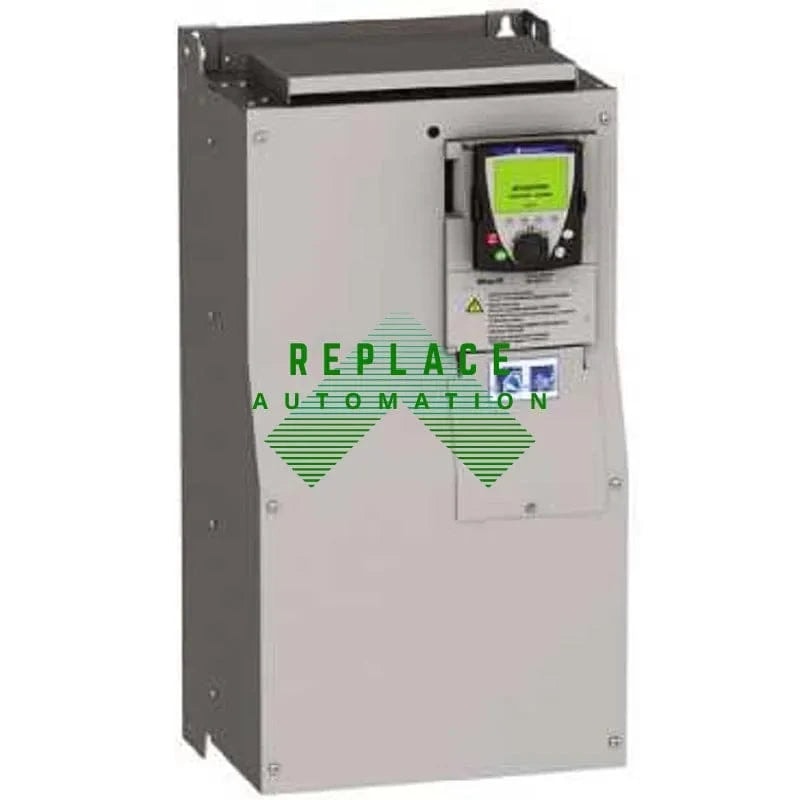

ATV61HD75N4
The ATV61HD75N4 is a high-performance Altivar 61 series 100HP variable speed drive optimized for pumping and ventilation applications. This 75kW unit operates at 460V within a 3-phase system, equipped with a Level 3 EMC filter, and supports advanced vector control, enabling energy-efficient motor operation with several communication options.
