| Phase | 3 phase |
| EMC filter | Integrated |
| Line current | 56 A 480 V 3 phase 30 kW / 40 hp 66 A 380 V 3 phase 30 kW / 40 hp |
| Apparent power | 43.4 kVA 380 V 3 phase 30 kW / 40 hp |
| Assembly style | With heat sink |
| Component name | ATV71 |
| Motor power kW | 30 kW, 3 phase 380...480 V |
| Output frequency | 0.1…599 Hz |
| Range of Product | Altivar 71 |
| Switching frequency | 1...16 kHz adjustable 4...16 kHz with derating factor |
| Prospective line Isc | 22 kA 3 phase |
| Type of polarization | No impedance Modbus |
| power supply voltage | 380...480 V - 15...10 % |
| Nominal output current | 52 A 4 kHz 460 V 3 phase 30 kW / 40 hp 66 A 4 kHz 380 V 3 phase 30 kW / 40 hp |
| Maximum transient current | 109 A 2 s 3 phase 30 kW / 40 hp 99 A 60 s 3 phase 30 kW / 40 hp |
| Product or Component Type | Variable speed drive |
| Maximum Horse Power Rating | 40 hp, 3 phase 380...480 V |
| Maximum motor cable length | 328.08 ft (100 m) shielded cable 656.17 ft (200 m) unshielded cable |
| Nominal switching frequency | 4 kHz |
| Product Specific Application | Complex, high-power machines |
| Asynchronous motor control profile | Sensorless flux vector control (SFVC) (voltage or current vector) Voltage/frequency ratio (2 or 5 points) Flux vector control (FVC) with sensor (current vector) ENA (Energy adaptation) system for unbalanced loads |
Does the Schneider Electric ATV71HD30N4 come with a warranty?
Yes. The ATV71HD30N4 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this ATV71HD30N4 a genuine Schneider Electric part?
The ATV71HD30N4 is sourced and verified independently. Replace Industrial is not an authorized distributor, affiliate, or representative of Schneider Electric, and all warranties are provided directly by Replace Industrial.
Is the Schneider Electric ATV71HD30N4 new or used?
We offer the ATV71HD30N4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the ATV71HD30N4?
The ATV71HD30N4 is rated at 30 kW, 3 phase 380...480 V, runs on 380...480 V - 15...10 %, and draws 52 A 4 kHz 460 V 3 phase 30 kW / 40 hp 66 A 4 kHz 380 V 3 phase 30 kW / 40 hp.
What is the Schneider Electric ATV71HD30N4?
The ATV71HD30N4 is a Schneider Electric ATV 71 Variable speed drive.

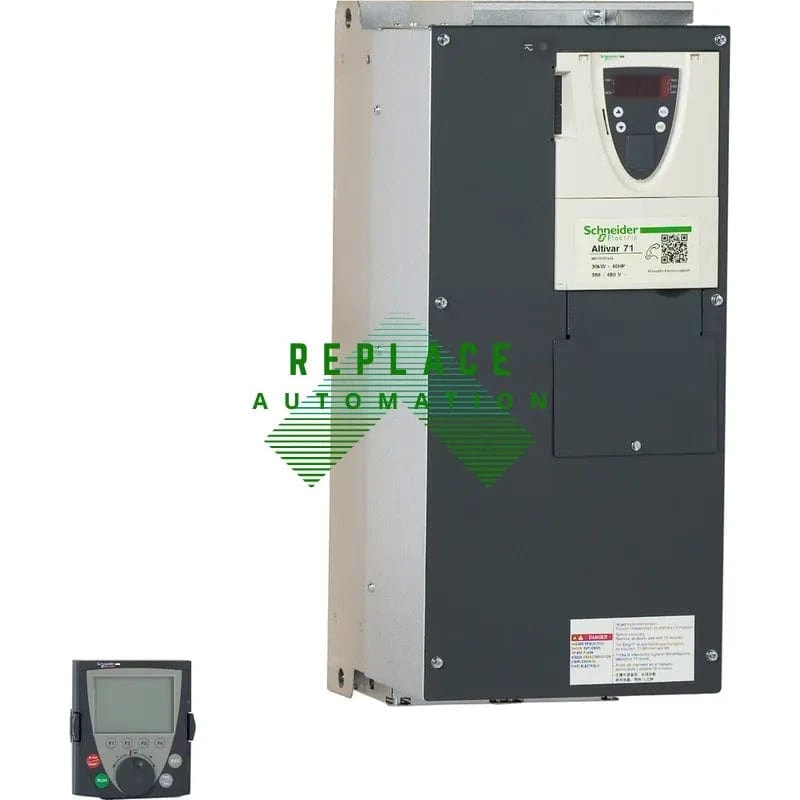

ATV71HD30N4
The ATV71HD30N4 is a 30 kW (40 HP), 480V Altivar 71 variable speed drive designed for complex, high-power machines. It features an integrated EMC filter, graphic terminal, and supports a variety of motor control profiles. Ideal for applications requiring up to 328 ft shielded or 656 ft unshielded motor cables.
